Vendor: iWave Systems Technologies Pvt. Ltd. Category: Interrupt Controller

8259A Interrupt Controller

8259A Interrupt Controller is designed to transfer the interrupt with highest priority to the CPU, along with interrupt address i…

Overview

8259A Interrupt Controller is designed to transfer the interrupt with highest priority to the CPU, along with interrupt address information.

Key features

  • Eight interrupt request input per chip
  • Up to 64 interrupt request inputs per system
  • Edge or level triggered interrupt request inputs
  • Individually maskable interrupt requestsProgrammable interrupt request priority orders
  • Polling operation capability
  • Extended mode with cascade connection of external interrupts
  • Supports Slave mode in extended mode

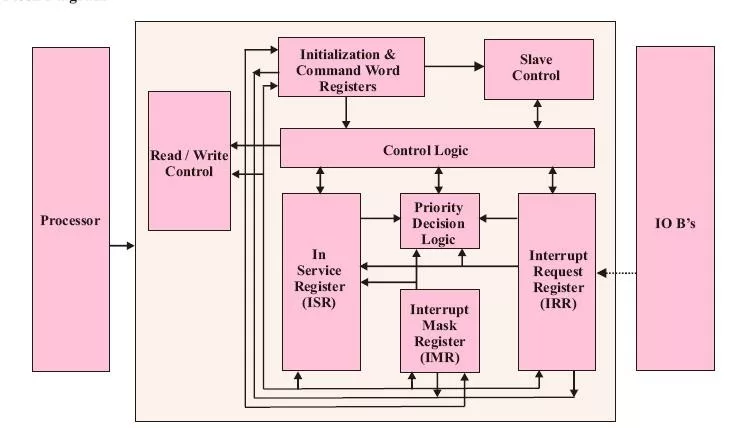

Block Diagram

Benefits

  • Can be used to assign priority levels to interrupt outputs
  • Allows cascading of multiple interrupts

Applications

  • Core is designed to use with industry standard microprocessors such as 80286, 8086/8088, 8080/85.

What’s Included?

  • ..

Files

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
8259A Interrupt Controller
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP

Provider

iWave Systems Technologies Pvt. Ltd.
HQ: India
