Vendor: CloudBEAR, LLC Category: CPU

64-bit RISC-V embedded core with in-order single issue pipeline

64-bit RISC-V embedded core with in-order single issue pipeline.

Overview

64-bit RISC-V embedded core with in-order single issue pipeline.
Optimized for low power and small area. Perfectly fits for embedded control.

Key features

  • Configurable instruction set architecture:
    • 64-bit RISC-V with 32 integer registers (I extension)
    • Integer multiplication and division (M extension)
    • Atomic operation support (A extension)
    • Compressed mode for better code density (C extension)
    • IEEE 754-2008 compliant single precision floating point (F extension)
    • IEEE 754-2008 compliant double precision floating point (D extension)
    • User mode interrupt handlers (N extension)
    • Bit manipulation instructions support (B extension)
    • Scalar cryptography instructions support (K extension)
    • Digital signal processing instructions support (P extension)
  • Single instruction issue
  • Machine and User modes
  • 8 stage in-order pipeline
  • Advanced branch predictor: BTB, BHT, RAS
  • Configurable memory subsystem: L1 I/D-caches, TCMs
  • Front-port to access TCMs by external masters
  • Configurable interrupt subsystem
    • Platform Level Interrupt Controller (PLIC)
    • Core Local Interruptor (CLINT): timer + software interrupts
    • Local interrupt support to provide fast handling
    • Core Local Interrupt Controller (CLIC)
    • Non-Maskable Interrupts (NMIs)
  • ECC memory protection (SEC-DED)
  • Physical memory protection
  • Integrated debug controller including HW breakpoints
  • System bus access
  • Compact JTAG support
  • Trace support
  • Power management support
  • AXI/AHB configurable interfaces
  • Performance
    • 1.81 DMIPS/MHz
    • 3.29 CoreMark/MHz
  • Frequency
    • 1.2 GHz (TSMC, 28nm HPC+, SSG corner)

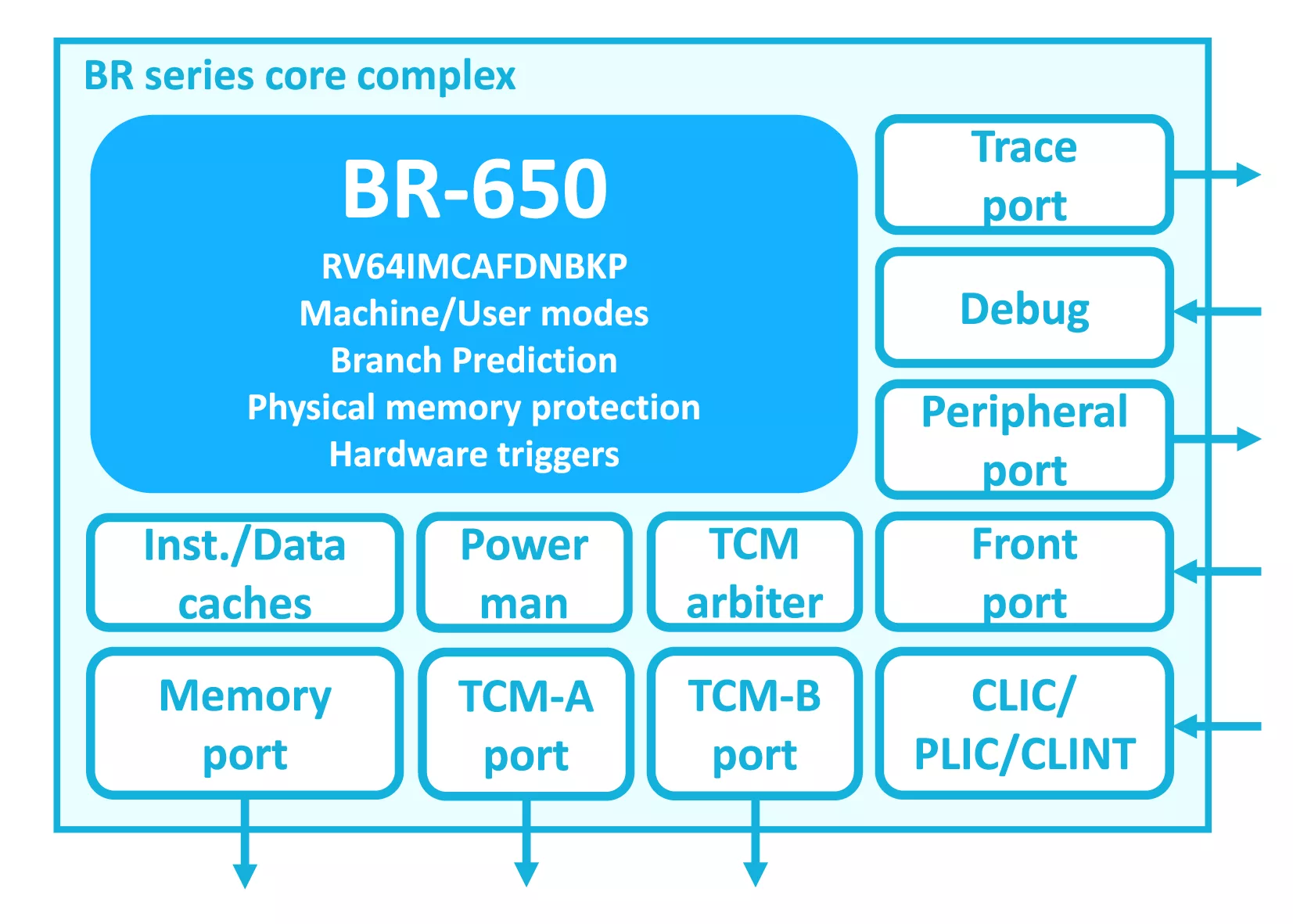

Block Diagram

Files

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
BR-650
Vendor
CloudBEAR, LLC
Type
Silicon IP

Provider

CloudBEAR, LLC
HQ: Russia
CloudBEAR company presents on the market a wide range of processor IP of different classes, compatible with RISC-V instruction system: from microcontroller level to high-performance processors with Linux support and the ability to customize for user tasks. The company's products include the BM-series of cores for microcontroller applications, BR-series for embedded systems requiring high real-time performance, and the BI series of Linux-enabled cores.
