Vendor: NTLab Category: High-Speed

4 Gbps DDR CML receiver and transmitter

055TSMC_CML_01 is a library including: - CML receiver (CML_RX); - CML transmitter (CML_TX).

Contact Provider Request Datasheet
TSMC 55nm GP Pre-Silicon View all specifications

Overview

055TSMC_CML_01 is a library including:
- CML receiver (CML_RX);
- CML transmitter (CML_TX).
The CML_RX block is intended to receive a CML signal and convert it to a CMOS signal. The CML_TX block is intended to convert signal from CMOS to CML standard and transmit CML signal to external circuits. CML_TX has pre-emphasis circuit.
IP technology: TSMC 55nm CMOS EF technology.
IP status: pre-silicon verification.
Total area:
- CML_RX – 121×121 um2;
- CML_TX – 110×171 um2.

Key features

  • TSMC CMOS 55 nm
  • TIA/EIA-644 LVDS standards
  • Data rate (receive/transmit): up to 4 Gbps (DDR mode)
  • 1.2V digital voltage supply
  • 1.2V core voltage supply
  • 1.2V CMOS input/output logic control signals
  • Temperature range: -40 °C to + 85 °C

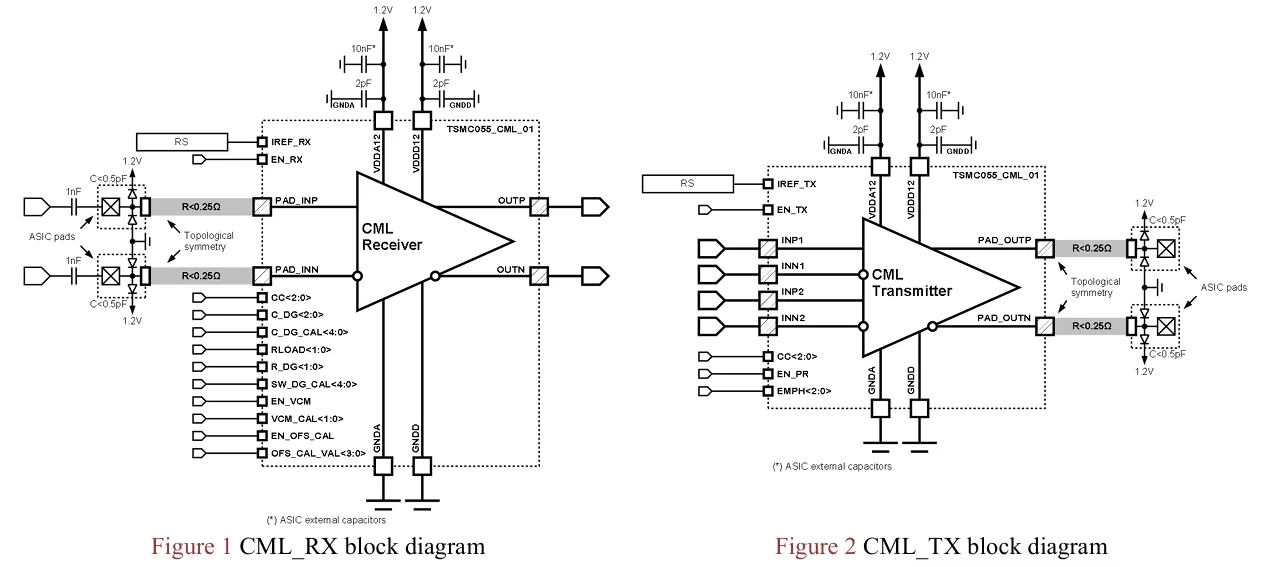

Block Diagram

055TSMC_CML_01 block diagram

Applications

  • Point-to-point data transmission
  • Multidrop buses
  • Clock distribution
  • Backplane receiver
  • Backplane data transmission
  • Cable data transmission

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 55nm GP Pre-Silicon

Specifications

Identity

Part Number
055TSMC_CML_01
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
