3.3V to 1.8V, 0.7A Step-down DC-DC converter

High-efficiency step-down DC-DC converter is targeted for operation from 3.3V input voltage.

Contact Provider Request Datasheet
Samsung 28nm FDS Silicon Proven View all specifications

Overview

High-efficiency step-down DC-DC converter is targeted for operation from 3.3V input voltage. It is able to supply circuits with programmable output voltage 1.8V at 0.7A output current. The DC-DC converter contains overvoltage protection, and undervoltage-lockout circuit. During startup time DC-DC converter can operate both in the soft start mode, which provides the gradual increase of the output voltage and without it. The embedded Bias and LDO blocks provide a required voltage and current references to DC-DC sub-blocks.

Key features

  • Supply voltage: 3.3V analog and 1.0V digital
  • Adjustable output voltage with trimming: 1.75V÷2.05V (1.8V typical)
  • Output current 0.7A
  • Soft start mode
  • Undervoltage-lockout circuit
  • Overvoltage protection
  • Zero-cross detection
  • Oscillator frequency adjustment
  • Operating frequency modulation
  • Thermal-shutdown at 150°C
  • Embedded voltage/current reference source
  • Power conversion efficiency 87%@0.7A
  • Silicon area: ~0.93mm2

Block Diagram

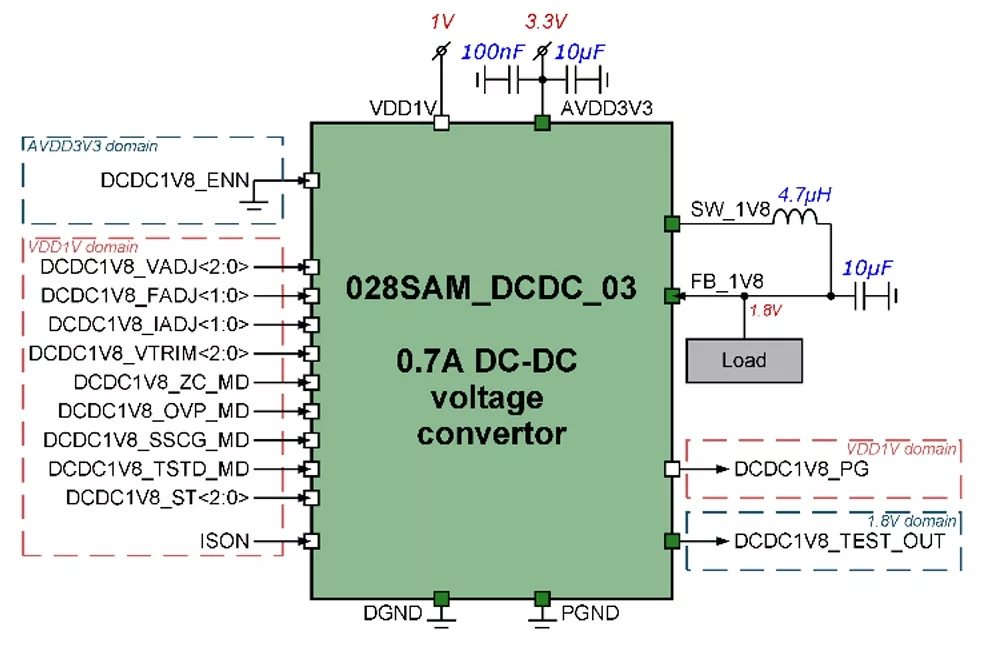

028SAM_DCDC_03 block diagram

Applications

  • Low-Voltage, High-Density Systems
  • Broadband, Networking, and Optical Communications Infrastructure

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation
