3.3V to 1.0V, 3.0A Step-down DC-DC converter

High-efficiency step-down DC-DC converter is targeted for operation from 3.3V input voltage.

Contact Provider Request Datasheet
Samsung 28nm FDS Silicon Proven View all specifications

Overview

High-efficiency step-down DC-DC converter is targeted for operation from 3.3V input voltage. It is able to supply circuits with programmable output voltage 1.0V at 3A output current.
The DC-DC converter contains overload protection, and undervoltage-lockout circuit. During startup time DC-DC converter can operate both in the soft start mode, which provides the gradual increase of the output voltage and without it.
Independent power good, enable and soft start pins allow simple power sequencing approaches for driving digital loads.
The embedded Bias and LDO blocks provide a required voltage and current references to DC-DC sub-blocks.

Key features

  • Supply voltage: 3.3V analog and 1.0V digital
  • Adjustable output voltage with trimming: 0.8V÷1.15V (1.0V typical)
  • Maximum output current up to 3A
  • Soft start mode
  • Undervoltage-lockout circuit
  • Overvoltage protection
  • Zero-cross detection
  • Oscillator frequency adjustment
  • Operating frequency modulation
  • Thermal-shutdown at 150°C
  • Embedded voltage/current reference source
  • Power conversion efficiency 82%@2A
  • Silicon area: ~ 1.7mm2

Block Diagram

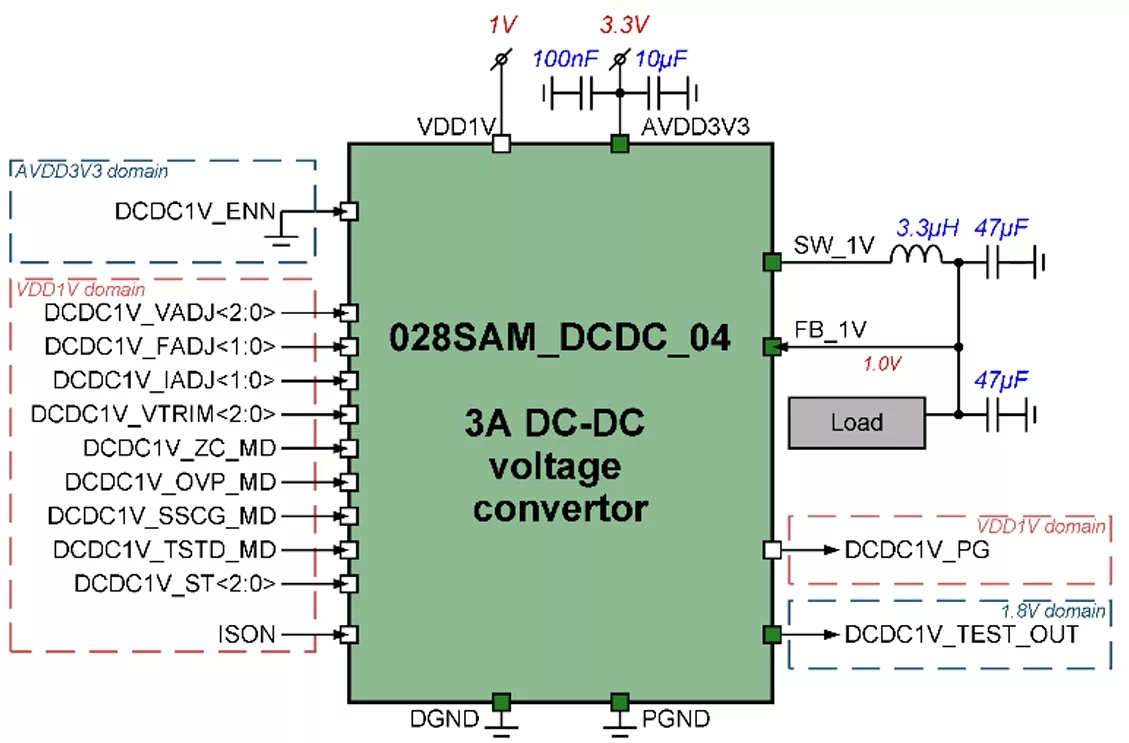

028SAM_DCDC_04 block diagram

Applications

  • Low-Voltage, High-Density Systems
  • Broadband, Networking, and Optical Communications Infrastructure

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download
