25/50/100 MHz 5th order passive LPF
065TSMC_LPF_05 is a 5th order passive differential low-pass filter (LPF) with fixed cut-off frequency presets.
Overview
065TSMC_LPF_05 is a 5th order passive differential low-pass filter (LPF) with fixed cut-off frequency presets. LPF is implemented using integrated inductors. Cut-off frequency switching is performed by switched-capacitor circuit.
Key features
- TSMC 65 nm CRN65LP
- Differential inputs, outputs
- Fixed cut-off frequency: 25 MHz, 50 MHz, 100 MHz
- High linearity
- Low noise figure
- Portable to other technologies (upon request)

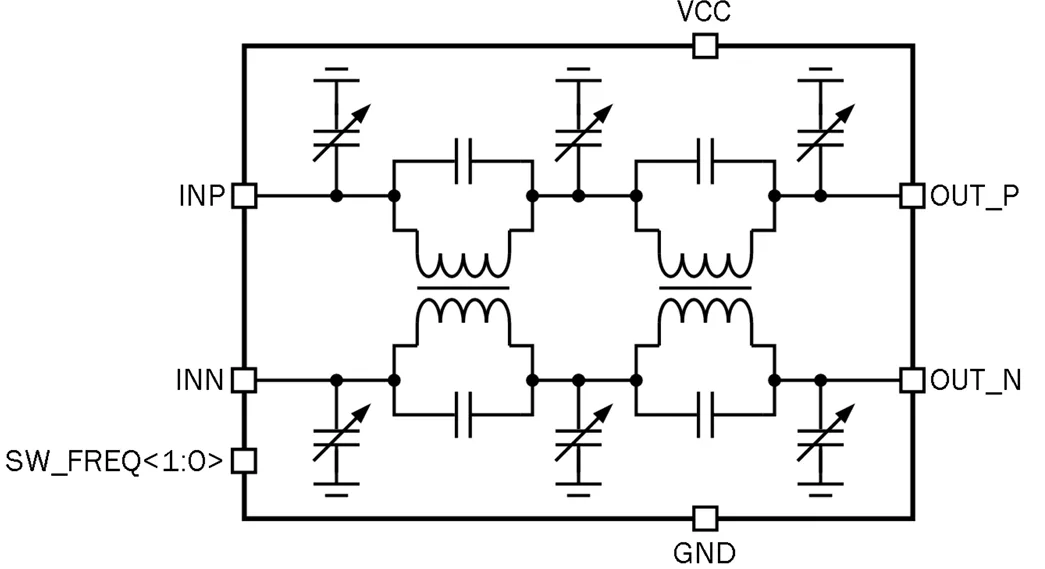

Block Diagram
065TSMC_LPF_05 block diagram
Applications
- IF signal processing
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 65nm | GP | Silicon Proven |
Specifications
Identity
Part Number
065TSMC_LPF_05
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
NTLab
HQ:
Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers.
NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software.
NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets.
Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
