Active Programmable High Pass Filter
The WEA228HPFA18BT122G is an active High Pass filter with variable frequency and variable gain.
Overview
The WEA228HPFA18BT122G is an active High Pass filter with variable frequency and variable gain. The cutoff frequency can be set from 2 MHz to 27.5 MHz with a residual absolute error less than 9% over process after calibration. The maximum gain is 16 dB and can be programmed with 2.5 dB steps. The filter support bypass mode. The filter resistors are programmable to minimize process variation effect on frequency.
Key features
- Power Supply: 1.8 V
- Cutoff frequency: 2 MHz to 27.5 MHz
- Max Gain: 16 dB
- Programmable gain
- Consumption: 3 mW
- Area: 646 um x 456 um
- Process : 22FDX
- Metal Option : 19

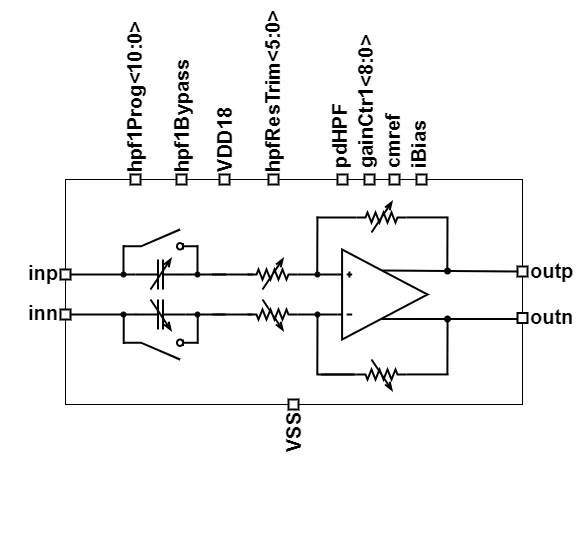

Block Diagram
WEA228HPFA18BT122G block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEA228HPFA18BT122G
Vendor
Weasic Microelectronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
Weasic Microelectronics
HQ:
Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
