Passive Programmable High Pass Filter
The WEA228HPFP18BT122G is a passive High Pass filter with programmable cutoff frequency from 2 MHz to 27.5 MHz with less than 10.…
Overview
The WEA228HPFP18BT122G is a passive High Pass filter with programmable cutoff frequency from 2 MHz to 27.5 MHz with less than 10.5 % residual absolute error after calibration. The filter supports capacitor bypass mode.
Key features
- Power Supply : 1.8 V
- Cutoff frequency : 2 MHz to 27.5 MHz
- Max Gain : 0 dB
- Programmable gain Consumption : 0 mW
- Area : 564 um x 133 um
- Process : 22FDX
- Metal Option : 19

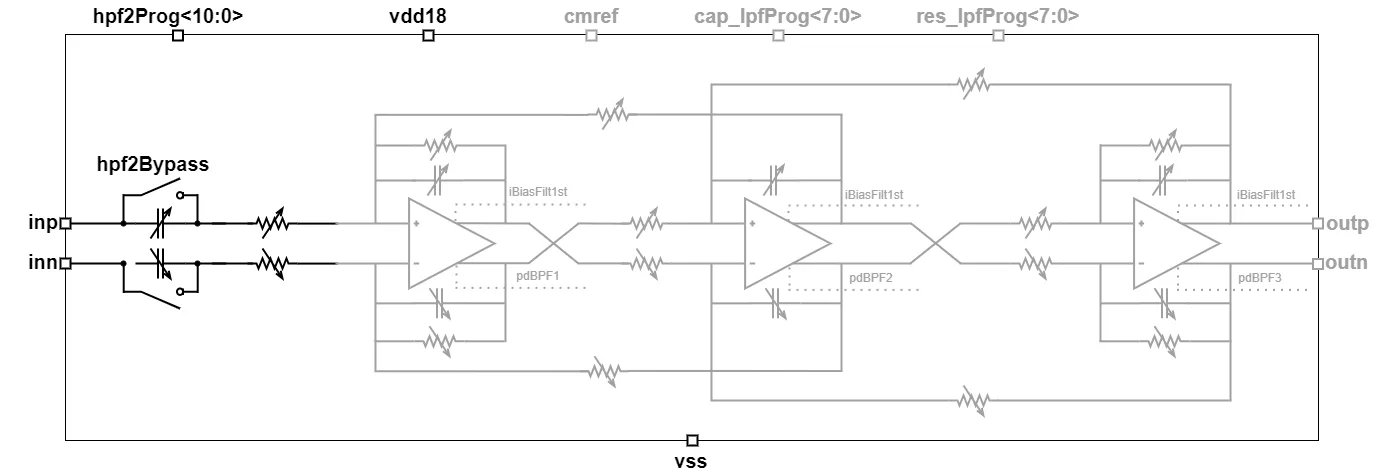

Block Diagram
WEA228HPFP18BT122G block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEA228HPFP18BT122G
Vendor
Weasic Microelectronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
Weasic Microelectronics
HQ:
Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
