Programmable Low Pass Filter
The WEA50175LPF18CH322G is a leapfrog low pass filter with programmable cut-off frequency.
Overview
The WEA50175LPF18CH322G is a leapfrog low pass filter with programmable cut-off frequency. The filter response is 3rd order Chebyschev. The low pass filter cutoff frequency can be selected from 40 MHz to 175 MHz. The resistors and the capacitors are programmable (6-bit and 4-bit respectively) and can be calibrated to minimize the low pass cutoff frequency accuracy due to process variation.
Key features
- Power Supply : 1.8 V
- Programmable Cutoff (typical): 40 to 175 MHz
- LPF rejection @ 350MHz: 31 dB
- Consumption : 8.9 mW
- Gain : 0 dB
- Area: 685 um x 120 um
- Process : 22FDX
- Metal Option : 19
Block Diagram

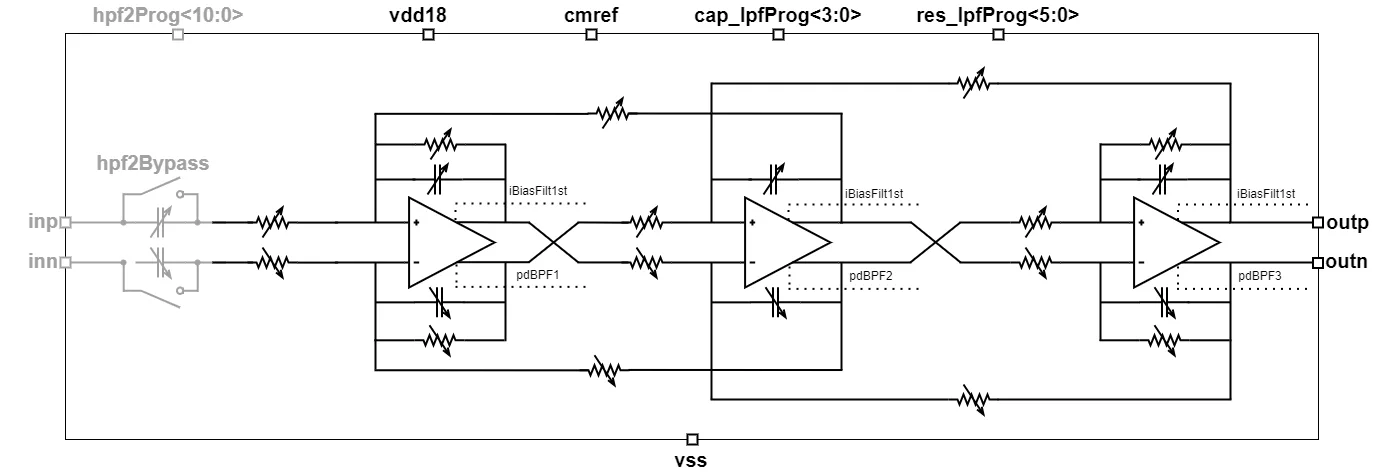

WEA50175LPF18CH322G block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
WEA50175LPF18CH322G
Vendor
Weasic Microelectronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
Weasic Microelectronics
HQ:
Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
