Active Programmable Low Pass Filter
The WEA321250LPF25CH5ST55 is an active 5th order Chebyshev Low Pass filter, synthesized in a Leapfrog architecture.
Overview
The WEA321250LPF25CH5ST55 is an active 5th order Chebyshev Low Pass filter, synthesized in a Leapfrog architecture. It has programmable cutoff frequency ranging from 32.5MHz to 1.25GHz with a passband transimpedance gain of 2.2KΩ . The resistors are programmable to minimize the process variation effect on the frequency.
Key features
- Power Supply: 2.5 V
- Cutoff frequency:32 MHz to 1250 MHz
- Transimpedance gain: 2.2 KΩ
- Consumption: 477 mW
- Area: 1813 um x 756 um
- Process : ST Micro B55

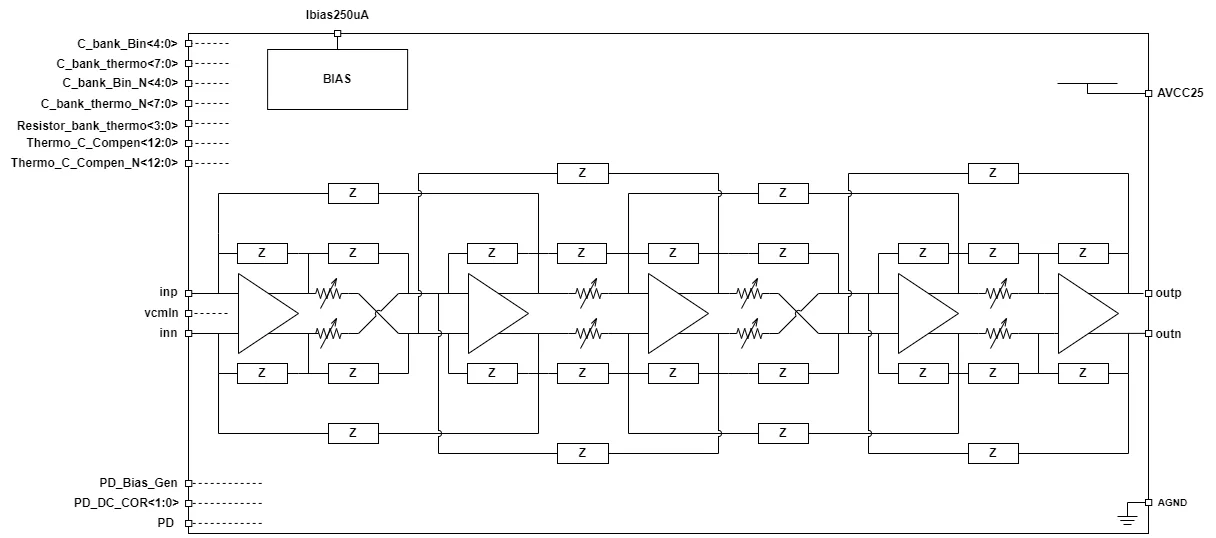

Block Diagram
WEA321250LPF25CH5ST55 block diagram
What’s Included?
- GDSII,
- Database,
- SystemVerilog Models
Specifications
Identity
Part Number
WEA321250LPF25CH5ST55
Vendor
Weasic Microelectronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
Weasic Microelectronics
HQ:
Greece
Weasic develops and markets mmWave Analog and Mixed-Signal IP for 5G backhaul, Automotive RADARs and Satellite Radios. Weasic’s world class design team has a strong record of successfully delivering first-pass silicon for the most challenging design specifications in performance, power consumption and silicon area. Weasic’s IP is in production with multiple customers world-wide, including some of the largest names in the industry sectors we serve. Weasic was founded in 2014 and is based in Athens, Greece.
