Vendor: NTLab Category: PLL

2/64/128 CMOS/ECL PLL high-frequency divider

The CMOS high-frequency divider consists of two independent circuits.

Contact Provider Request Datasheet
TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

The CMOS high-frequency divider consists of two independent circuits. The first divider is a set of serially connected CMOS dividers with a dividing ratio 2. The second circuit is based on ECL logic and has differential signal. The reference current source of ECL circuit has temperature dependent and temperature independent modes. The buffer-commutators are used to output the signal of a frequency divided by 2, 64 or 128.
The block is fabricated on TCMS BiCMOS 0.18 um technology.

Key features

  • TSMC BiCMOS SiGe 180 nm
  • Fixed dividing ratio 128 with complementary outputs of dividers on 2 and 64
  • Two divider types: CMOS and ECL
  • Temperature dependent mode of reference current
  • Portable to other technologies (upon request)

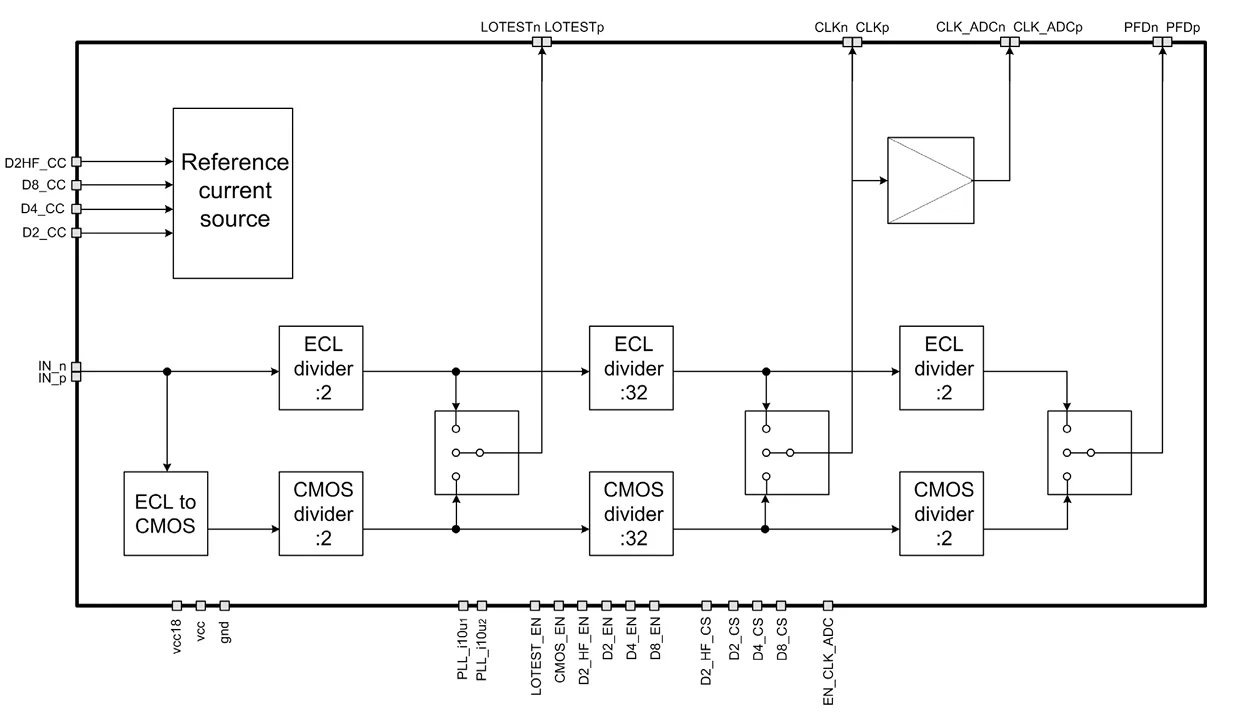

Block Diagram

180TSMC_PLLDIV_01 block diagram

Applications

  • PLL frequency synthesizer

What’s Included?

  • Schematic or NetList
  • Layout or blackbox
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 180nm BCDG2 Silicon Proven

Specifications

Identity

Part Number
180TSMC_PLLDIV_01
Vendor
NTLab
Type
Silicon IP

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
Contact NTLab
