Vendor: NTLab Category: DAC

12-bit 4-channel 1MSPS R/2R DAC

The 4-channel 12-bit R/2R DAC designed for generating analog control signals.

Contact Provider Request Datasheet
12 Bit TSMC 55nm GP Silicon Proven View all specifications

Overview

The 4-channel 12-bit R/2R DAC designed for generating analog control signals. The DAC has the ability to work with an external and internal full-scale reference voltage generator and the ability to disable each channel. The DAC consists of three main blocks: the reference voltage source, the DAC core and the control unit.

Key features

  • TSMC CMOS 55 nm
  • Resolution 12 bit
  • 4-channel
  • Sampling rate up to 1 MSPS
  • Differential nonlinearity +/- 1 LSB
  • Integral nonlinearity +/- 2 LSB
  • Small area 0.129 mm2

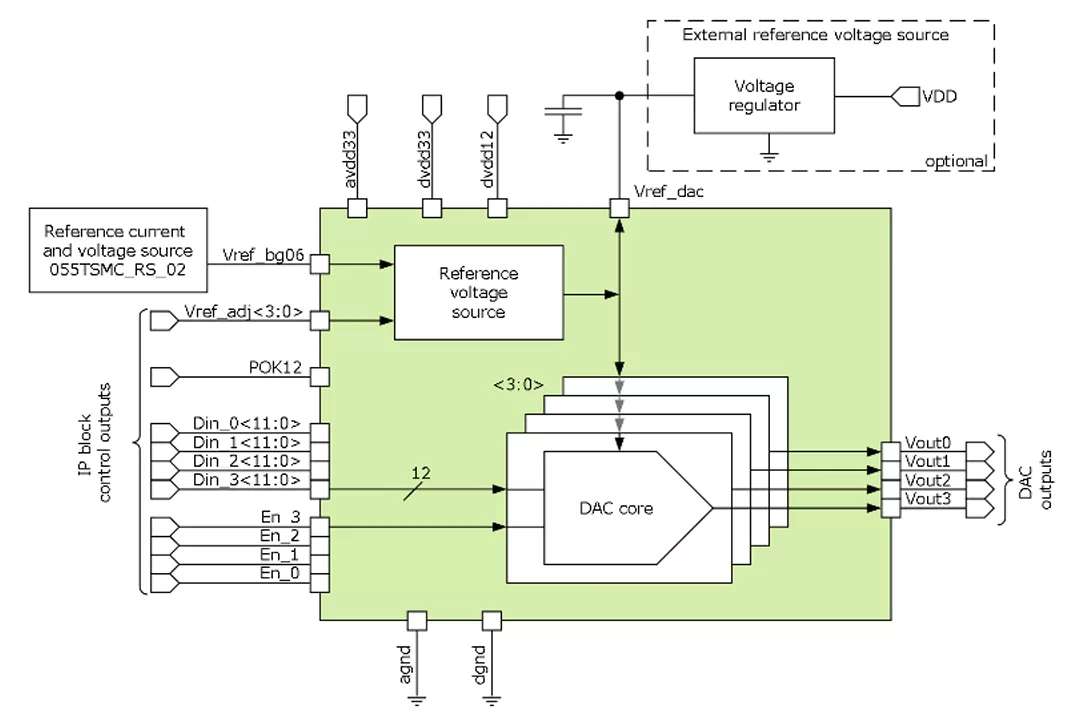

Block Diagram

055TSMC_DAC_01 block diagram

Applications

  • Wireless infrastructures
  • Broadband communications
  • Picocell, femtocell base stations
  • Medical instrumentation
  • Ultrasound transducer excitation
  • Signals and arbitrary waveform generators

What’s Included?

  • Schematic or NetList
  • Abstract view (.lef and .lib files)
  • Layout (optional)
  • Verilog behavior model
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 55nm GP Silicon Proven

Specifications

Identity

Part Number
055TSMC_DAC_01
Vendor
NTLab
Type
Silicon IP

Analog

Resolution bits
12 Bit

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
