1.68 to 1.917 GHz Phase-Locked Loop

Frequency synthesizer built on PLL by dividing the integer coefficients.

Contact Provider Request Datasheet

Overview

Frequency synthesizer built on PLL by dividing the integer coefficients. Synthesizer unit includes: R-divider of external reference oscillator frequency with a programmable division factor of 1 to 31, frequency-phase detector (PFD) with the charge pump, loop filter, a voltage controlled oscillator (VCO), VCO voltage control comparators, VCO frequency divider with programmable dividing ratio of 12 to 31, VCO frequency N-divider with programmable dividing ratio of 64 to 2047, 5/6/8/10 divider, 2/4/8 divider.

Key features

  • AMS SiGe BiCMOS 0.35um
  • Reference frequency from 10MHz to 125MHz
  • LO1 frequency range from 1.692GHz to 1.973GHz
  • LO2 frequency range from 175MHz to 225MHz
  • Clock frequency range from 10MHz to 125MHz
  • Charge Pump output current low imbalance
  • No external components required
  • Low phase noise

Block Diagram

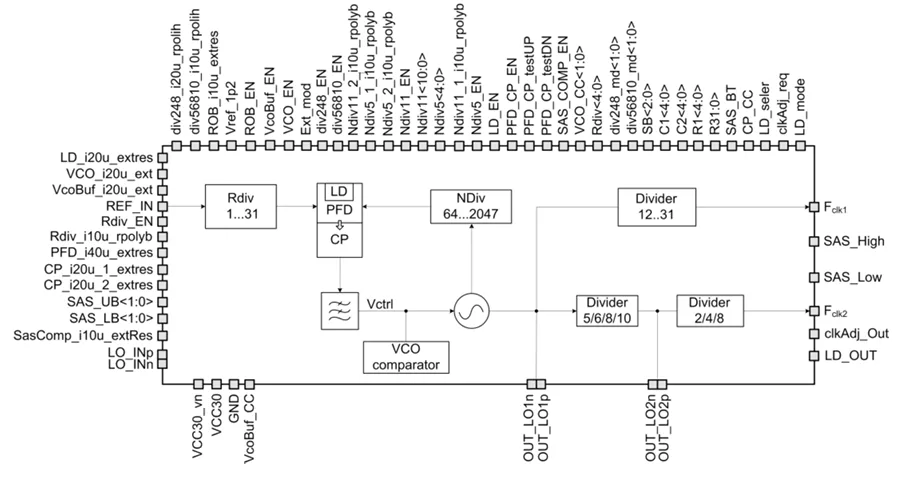

350AMS_PLL_04 block diagram

Applications

  • Frequency clock generation

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation
