Xccela PSRAM Memory Model
Xccela PSRAM Memory Model provides an smart way to verify the Xccela PSRAM component of a SOC or a ASIC.
Overview
Xccela PSRAM Memory Model provides an smart way to verify the Xccela PSRAM component of a SOC or a ASIC. The SmartDV's Xccela PSRAM memory model is fully compliant with standard Xccela PSRAM Specification and provides the following features. Better than Denali Memory Models.
Xccela PSRAM Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
Xccela PSRAM Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
Key features
- Supports Xccela PSRAM memory devices from all leading vendors
- Supports 100% of Xccela PSRAM protocol standard
- Supports all the Xccela PSRAM commands as per the specs
- Supports below Low Power Features
- Partial Array Self-Refresh (PASR)
- Auto Temperature Compensated Self-Refresh (ATCSR) by built-in temperature sensor
- User configurable refresh rate
- Ultra Low Power (ULP) Half Sleep mode with data retained
- Supports Software Reset
- Reset Pin Available
- Supports Data Mask (DM) for write data
- Supports Data Strobe (DQS) enabled high speed read operation
- Supports Register Configurable write and read initial latencies
- Supports Write Burst Length, maximum 1024 bytes, minimum 2 bytes
- Supports Wrap & Hybrid Burst in 16/32/64/1K lengths
- Supports Linear Burst Command
- Row Boundary Crossing (RBX) for Read can be enabled via Mode Register
- RBX Write is NOT supported
- RA[13] Boundary Crossing is NOT supported between 2 dies
- Supports 16MB, 32MB, 64MB, 128MB, 256MB density
- Supports x16, x8, x1/x4 IO configuration
- Checks for following
- Check-points include power on, Initialization and power off rules
- State based rules, Active Command rules
- Read/Write Commands rules etc
- All timing violations
- Bus-accurate timing for min, max and typical values
- Notifies the test bench of significant events such as transactions, warnings, timing and protocol violations
- Constantly monitors Xccela PSRAM behavior during simulation
- Protocol checker fully compliant with Xccela PSRAM JEDEC draft Specification
- Models, detects and notifies the test bench of significant events such as transactions, warnings, timings and protocol violations
- Built in functional coverage analysis
- Supports callbacks, so that user can access the data observed by monitor

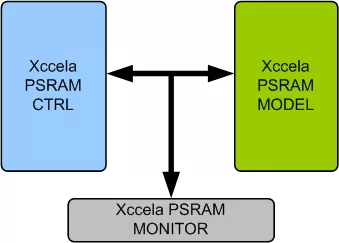

Block Diagram
Xccela PSRAM Memory Model block diagram
Benefits
- Faster testbench development and more complete verification of Xccela PSRAM designs.
- Easy to use command interface simplifies monitor control and configuration.
- Simplifies results analysis.
- Runs in every major simulation environment.
What’s Included?
- Complete regression suite containing all the Xccela PSRAM testcases.
- Complete UVM/OVM sequence library for Xccela PSRAM controller.
- Examples showing how to connect and usage of Model.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
Xccela PSRAM Memory Model
Vendor
SmartDV Technologies
Type
Silicon IP
Provider
SmartDV Technologies
HQ:
India
At SmartDV Technologies™, we believe there’s a better way to approach semiconductor intellectual property (IP) for integrated circuits. We’ve been focused exclusively on IP since 2007—so whether you’re sourcing standards-based design IP for your next SoC, ASIC, or FPGA, or seeking verification solutions (VIP) to put your chip design through its paces, you’ll find SmartDV’s IP straightforward to integrate. By combining proprietary SmartCompiler™ technology with the knowledge of hundreds of expert engineers, SmartDV can customize IP to meet your unique design objectives: quickly, economically, and reliably. Don’t allow other suppliers to force onesize-fits-all cores into your chip design. Get the IP you need, tailored to your specifications, with SmartDV: IP Your Way.
