Vendor: Cadence Design Systems, Inc. Category: DSP Core

Hardware Accelerator for 4D Imaging Radar Solution for Vision 331 and Vision 341 DSPs

The latest addition to the Vision DSP family, built using 128-bit SIMD and offering up to 0.4TOPs of performance The Cadence® Ten…

Contact Provider Request Datasheet

Overview

The Cadence Tensilica Vision 4DR Accelerator is a hardware designed to address the increasing computational requirements for 4D Imaging radar for the automotive market. While working in conjunction with Vision 341 DSP, it provides up to 7X greater FFT performance than previous generation Vision DSPs. Because of its much higher performance than a DSP-only solution, a combined solution of Vision 331/341 and Vision 4DR saves considerable power and area.

Key features

Vision 4DR Accelerator has been designed to provide the best combination of hardware wire and programmable solution for 4D imaging radar. It offers the ability to operate on large data cubes required for today’s automotive solution. Because of its much higher performance than a DSP-only solution, a combined solution of Vision 331/341 and Vision 4DR saves considerable power and area.

  • Accelerates 2D and 1D Fast Fourier Transform (FFT) commonly used in Radar processing
  • 16/24-bit fixed-point processing
  • Programmable input scaling
  • AXi-based IP with multiple DMA (128/256-bit) for fast data movement
  • Highly programmable: ability to select data width, windowing, FFT size
  • System software to work as FFT offload engine for Vision 331/341
  • ISO 26262 ready for the automotive market

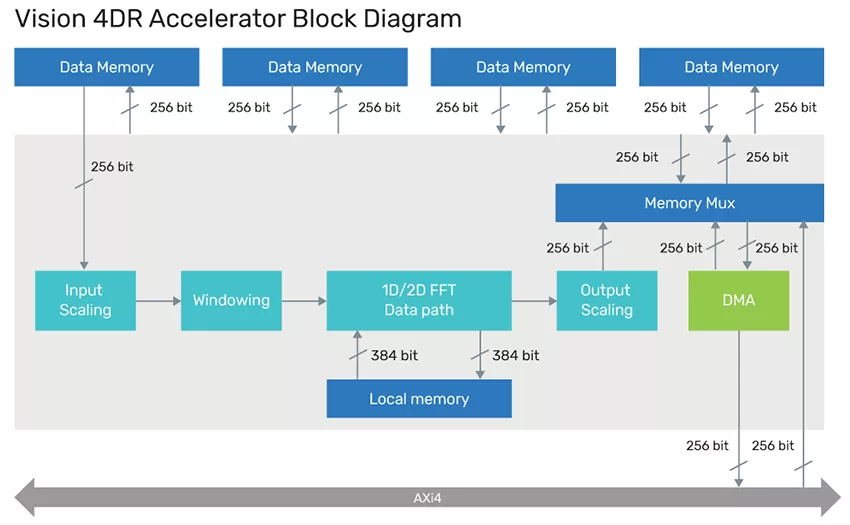

Block Diagram

Click to open fullscreen

Benefits

Area and Power Optimized

Hardware pipeline for 2D and 1D FFT acceleration eliminate needs for additional DSPs

2D and 1D FFT Processing

Hardware pipeline specifically to operate on 2D/1D 16 and 24-bit DSP

High Performance

While working in conjunction with Vision 341 DSP it provides up to 7X greater FFT performance than previous generation Vision DSPs

Specifications

Identity

Part Number
Vision 4DR Accelerator
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Cadence Design Systems, Inc.
HQ: USA
If you want to achieve silicon success, let Cadence help you choose the right IP solution and capture its full value in your SoC design. Cadence® IP solutions offer the combined advantages of a high-quality portfolio, an open platform, a modern IP factory approach to quality, and a strong ecosystem. Now you can tackle IP-to-SoC development in a system context, focus your internal effort on differentiation, and leverage multi-function cores to do more, faster. The Cadence IP Portfolio includes silicon-proven Tensilica® IP cores, analog PHY interfaces, standards-based IP cores, verification IP cores, and other solutions as well as customization services for current and emerging industry standards. The Cadence IP Factory provides you with an automated approach to the customization, delivery, and verification of SoC IP. As a result, you can spend more time on differentiation, with the assurance that you'll meet your performance, power, and area requirements. Choosing Cadence IP enables you to design with confidence because you have more freedom to innovate your SoCs with less risk and faster time to market.
