Vendor: Ceva, Inc. Category: DSP Core

5G IoT DSP

The XC21 is the most efficient vector DSP core available today for communications applications.

Contact Provider Request Datasheet

Overview

The XC21 is the most efficient vector DSP core available today for communications applications.

The XC21 DSP is designed for low-power, cost- and size-optimized cellular IoT modems, NTN VSAT terminals, eMBB and uRLLC applications. Ceva-XC21 offers scalable architecture and dual thread design with support for AI, addressing growing demand for smarter, yet more cost and power efficient cellular devices

Targeted for 5G and 5G-Advanced workloads, the XC21 has multiple products configurations enabling system designers to optimize the size and cost to their specific application needs.

The Solution

The Ceva-XC21, based on the advanced Ceva-XC20 architecture, features a product line of 3 vector DSP cores. Each of the cores offers a unique performance & area configuration with a SW compatibility between them. The different cores span across single thread or dual thread configurations, and 32 or 64 16bits x 16bits MACs.

The Ceva-XC212, the highest performing variant of the Ceva-XC21 delivers up to 1.8x times the performance of Ceva’s previous-generation Ceva-XC4500 architecture, while reducing the core area.

Ceva-XC210, the smallest configuration of the Ceva-XC21, enables system designers to reduce the core die size in 48% compared with the previous generation.

Ceva-XC211 offers the same performance envelope compared with the previous generation at 63% of the area.

Key features

  • True dual-threaded hardware, including dual processing elements and dual instruction and data memory subsystems for contention-free multithread execution
  • AI workloads support with INT8/16/32 data types
  • Supports half-precision, single-precision, and double-precision floating point
  • Advanced pipeline implementation assures high clock frequencies
  • Low power operating modes for system power optimizations
  • Nine-issue VLIW instruction set architecture and optimizing LLVM C compiler deliver high throughput without extensive assembly coding
  • Up to six AXI4 bus connections in AMBA matrix interconnect architecture assure enormous bandwidth but simple, standards-compliant interfacing.
  • Dedicated 5G / 5G-Advanced ISA for 5G NR acceleration
  • ETM compliance, JTAG, RTT, Profiler, APB slave

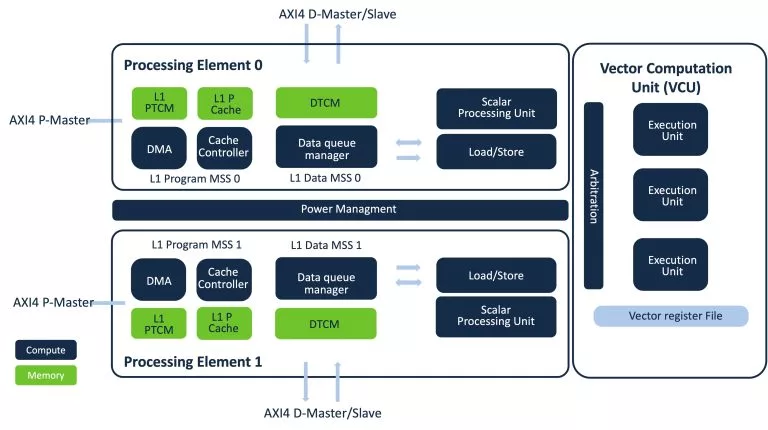

Block Diagram

Ceva-XC21 block diagram

Benefits

  • The Ceva-XC21 DSP offers exceptional efficiency in terms of power, performance, and area, making it ideal for 4G, 5G, and 5G-Advanced NR implementations. With AI support and programmability, these DSPs not only enhance modem performance but also enable advanced AI and ML workloads.
  • The Ceva-XC21 is software compatible with the Ceva-XC4500 and provides scalable performance across various 5G profiles, targeting cost and size constrained devices such as mMTC, eRedCap and RedCap. With a high control code performance of 5.14 CoreMark/MHz, it ensures top-notch performance. The core features a unified programming model across all Ceva-XC20 variants and supports low power modes for system power optimization. The design allows for easy integration into SoCs with standard AMBA4 buses. Additionally, the complete software tool chain includes an optimizing LLVM C compiler for high-level programming, and best-in-class debug capabilities for effective system development.

Applications

  • Infrastructure
  • Industrial
  • Consumer IoT

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Ceva-XC21
Vendor
Ceva, Inc.
Type
Silicon IP

Provider

Ceva, Inc.
HQ: USA
