Very High Speed 3GPP LTE Turbo Decoder

This is a very high speed and fully compatible 3GPP LTE turbo decoder with one, two, four or eight parallel MAP decoders.

Contact Provider Request Datasheet

Overview

This is a very high speed and fully compatible 3GPP LTE turbo decoder with one, two, four or eight parallel MAP decoders.

Key features

  • 8 state 3GPP LTE compatible turbo decoder
  • Rate 1/3
  • 40 to 6144 bit interleaver
  • Up to 280 MHz internal clock
  • Up to 204 Mbit/s with 5 decoder iterations
  • 6-bit signed magnitude input data
  • 1, 2, 4 or 8 parallel MAP decoders
  • Optional log-MAP or max-log-MAP constituent decoder algorithms
  • Up to 32 iterations in 1/2 iteration steps
  • Optional power efficient early stopping
  • Optional extrinsic information scaling and limiting
  • Estimated channel error output
  • Free simulation software
  • Available VHDL core for Xilinx FPGAs under SignOnce IP License. ASIC, Altera, Lattice and Microsemi cores available on request.

Block Diagram

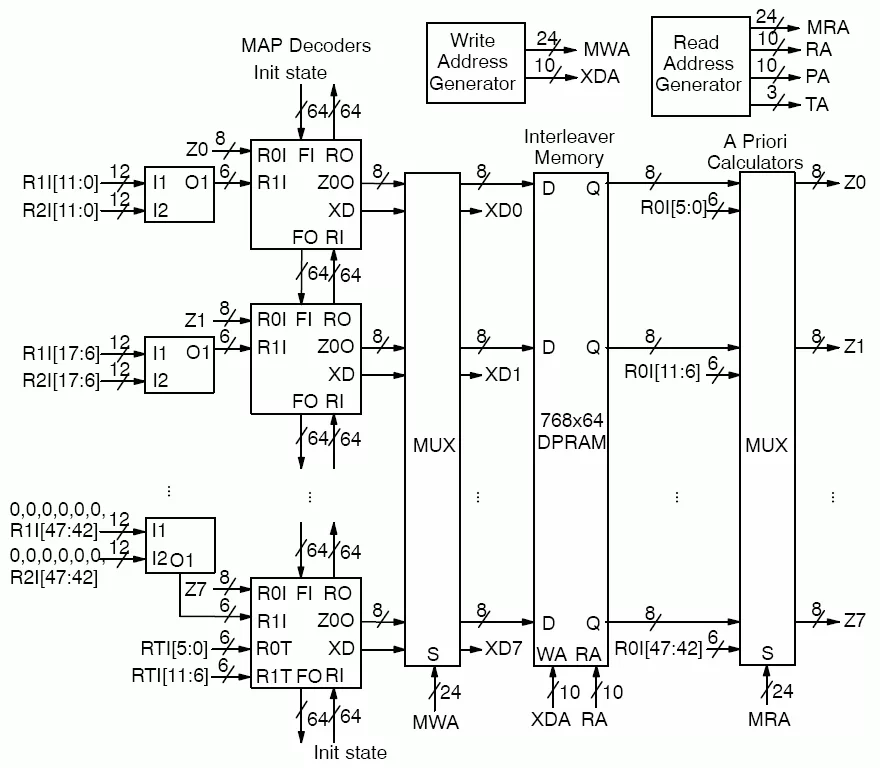

PCD03L8 block diagram

What’s Included?

  • All Licenses
    • Xilinx VHDL Core
    • Test vector generation software
  • VHDL ASIC License
    • ASIC VHDL Core
    • C++ bit/cycle exact simulation model

Specifications

Identity

Part Number
PCD03L8
Vendor
Small World Communications
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Small World Communications
HQ: Australia
Small World Communications was started in January 1997 and is located in Adelaide, Australia. We specialise in error control decoder products for programmable gate arrays.
Contact Small World Communications
