Vendor: System Level Solutions, Inc. Category: USB

USB 2.0 HUB (USB20HUB)

The USB 2.0 Hub IP core provides a link between the USB2.0 Host and multiple USB peripherals via UTMI + Low pin interface (ULPI).

Overview

The USB 2.0 Hub IP core provides a link between the USB2.0 Host and multiple USB peripherals via UTMI + Low pin interface (ULPI). It supports High speed, Full speed and Low speed peripheral devices. Its rich features and ease of use makes it more suitable for embedded applications.

Key features

  • Supports High speed, Full speed and Low speed peripheral devices
  • Integrated Transaction Translator (TT)
  • Supports individual port power switching
  • Remote wakeup capable
  • Configurable Hub speed
    • Enables you to reduce resource utilization based on your needs
  • Configurable Transaction Translator buffers
  • Supports Suspend and Resume
  • Supports connect/disconnect detection of down-stream ports
  • Supports standard as well as hub class-specific requests
  • Supports UTMI + Low Pin interface (ULPI)
  • Reliable
    • Verified against Chapter 9 Tests and Hub Tests available in USB2.0 Command Verifier
  • Easy to use

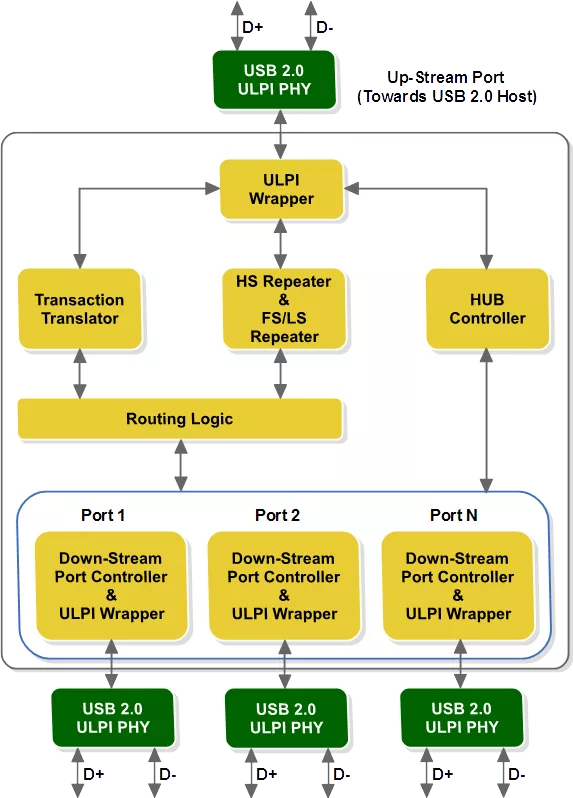

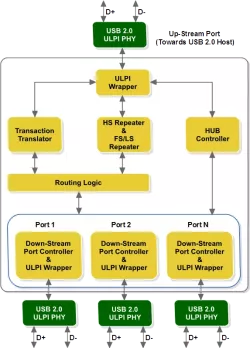

Block Diagram

Applications

  • Portable Hub boxes
  • Printers
  • Televisions and Monitors
  • Embedded systems
  • Music systems

Files

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
IPRUSB2SFP014
Vendor
System Level Solutions, Inc.

Provider

System Level Solutions, Inc.
HQ: USA
