Vendor: Cadence Design Systems, Inc. Category: DSP Core

Tensilica HiFi 4 DSP

2X the performance of the HiFi 3 DSP for DSP-intensive applications like multi-channel, digital assistant front-end processing, a…

Contact Provider Request Datasheet

Overview

2X the performance of the HiFi 3 DSP for DSP-intensive applications like multi-channel, digital assistant front-end processing, and neural network-based ASR

The Cadence® Tensilica® HiFi 4 DSP provides 32-bit fixed and floating-point performance, for highly demanding DSP applications in smart speakers, home entertainment, and automotive infotainment. It is well suited for complex multi-mic far-field processing and wake word detection with neural network (NN) techniques for use in voice assistants. It supports the latest object-based codecs for use in STB and TV products.

VLIW Slots 4



Fixed-Point MACs per Cycle



 32x32 4
24x24 4
32x16 up to 8
16x16 up to 8
Accumulator 64/ 72-bit
FPU (Optional) 2 Integrated 2-way SIMD Vector FPU
ITU Intrinsic Support Yes
Circular Buffer Support 2
Bitstream VLE/VLD Yes
User-Defined Instructions Yes

Key features

  • Support for eight 32x16-bit MACs per cycle under specific conditions
  • Four very long instruction word (VLIW) slot architecture capable of issuing two 64-bit loads per cycle
  • Optional vector floating-point unit available, providing up to four single-precision IEEE floating-point MACs per cycle
  • Software compatibility with the complete HiFi DSP product line, totaling over 300 HiFi-optimized audio and voice codecs and audio enhancement software packages
  • HiFi NN library offers optimized set of library functions commonly used in NN processing (especially speech), which can easily be integrated into popular machine learning frameworks

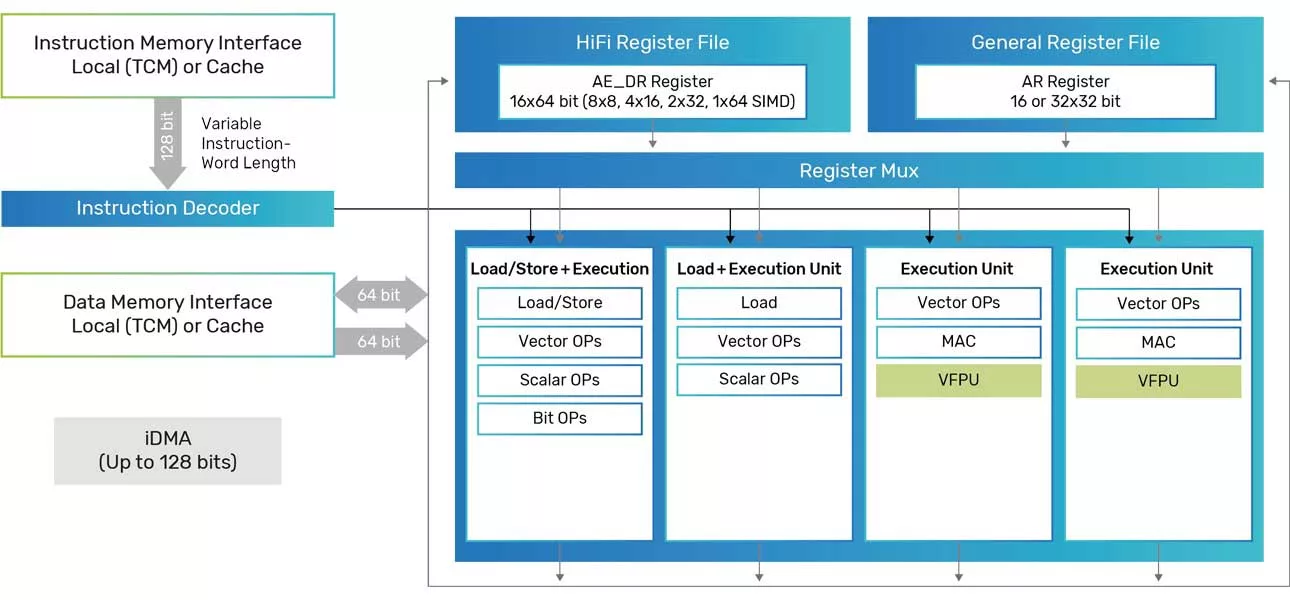

Block Diagram

Click to open fullscreen

Benefits

Complex, Object-Oriented Codec

Provides efficient execution of complex audio codecs for use in TVs, STBs, and soundbars

High DSP Performance

Doubles the performance of HiFi 3z DSP for compute-intensive functions such as FFT and FIR, and accommodates the most performance-hogging algorithms such as ANC, noise suppression, and sound analytics

NN-Based Voice Assistant

Combines high DSP performance with enhanced NN performance and is an excellent choice for reliable far-field voice assistant functions for TVs, STBs, soundbars, and smart speakers

ISO 26262 Compliant

Certified as ASIL-compliant and equipped with both hardware and software safety mechanisms

Specifications

Identity

Part Number
Tensilica HiFi 4 DSP
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Cadence Design Systems, Inc.
HQ: USA
If you want to achieve silicon success, let Cadence help you choose the right IP solution and capture its full value in your SoC design. Cadence® IP solutions offer the combined advantages of a high-quality portfolio, an open platform, a modern IP factory approach to quality, and a strong ecosystem. Now you can tackle IP-to-SoC development in a system context, focus your internal effort on differentiation, and leverage multi-function cores to do more, faster. The Cadence IP Portfolio includes silicon-proven Tensilica® IP cores, analog PHY interfaces, standards-based IP cores, verification IP cores, and other solutions as well as customization services for current and emerging industry standards. The Cadence IP Factory provides you with an automated approach to the customization, delivery, and verification of SoC IP. As a result, you can spend more time on differentiation, with the assurance that you'll meet your performance, power, and area requirements. Choosing Cadence IP enables you to design with confidence because you have more freedom to innovate your SoCs with less risk and faster time to market.
Contact Cadence Design Systems, Inc.

Learn more about DSP Core IP core

icyflex: an ultra-low power DSP core for portable applications

The icyflex family of ultra low power 16/32-bit RISC processor cores developed by CSEM offers a flexible architecture that allows for different com-binations of control and DSP functionality. These processors target applications requiring long battery life at the same time as on-chip processing power. Three silicon-proven icyflex cores are available, consuming as little as 6 μW/MHz.
