Vendor: NTLab Category: Temperature Sensor

Temperature sensor

Temperature sensor consists of built-in 10-bit R-2R DAC, diode and own reference voltage former.

Contact Provider Request Datasheet
SMIC 180nm G Silicon Proven View all specifications

Overview

Temperature sensor consists of built-in 10-bit R-2R DAC, diode and own reference voltage former. When requested, controller performs conversion of diode voltage level, which depends on temperature linearly. After conversion is done it sets "ready" flag to "1" and outputs 10-bit code. Die temperature is calculated with the following expression: Temp = (code-407)*0.625.
The conversion time is 640 us.
With small size, usability and low current consumption, this device is ideal for use in controlling of the die temperature.
The block is fabricated on SMIC CMOS 0.18 um technology.

Key features

  • SMIC CMOS 0.18 um
  • Output voltage 1.2 V
  • Temperature-compensated voltage in a wide temperature range
  • Low current consumption
  • Small area
  • Bipolar diode characteristics control
  • Portable to other technologies (upon request)

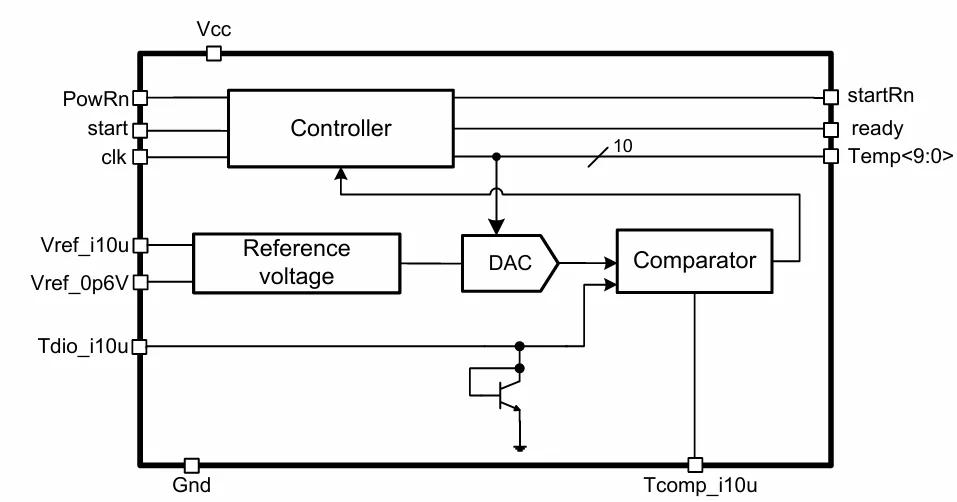

Block Diagram

180SMIC_TS_01 block diagram

Applications

  • Supply voltage stabilization systems
  • Comparison and detection systems
  • System-on-chip for different purposes
  • Measurement and calibration systems
  • Technological research of microelectronic components
  • Navigation systems

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
SMIC 180nm G Silicon Proven

Specifications

Identity

Part Number
180SMIC_TS_01
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
