Vendor: NTLab Category: Temperature Sensor

Temperature sensor

Temperature sensor consists of built-in 10-bit R-2R DAC, diode and own reference voltage former.

Contact Provider Request Datasheet
TSMC 65nm GP Silicon Proven View all specifications

Overview

Temperature sensor consists of built-in 10-bit R-2R DAC, diode and own reference voltage former. When requested, controller performs conversion of diode voltage level, which depends on temperature linearly. After conversion is done it sets “ready” flag to “1” and outputs 10-bit code. The sensor can operate in two modes: single measurement and continuous measurement. With small size, usability and low current consumption, this device is ideal for use in controlling of the die temperature. The block is designed on TSMC CMOS 65 nm technology.

Key features

  • TSMC CMOS 65 nm
  • Operating temperature range -40 …+125 ºC
  • Built-in 10-bit R-2R DAC
  • Low current consumption 95 uA
  • Small area
  • No external components required
  • Portable to other technologies (upon request)

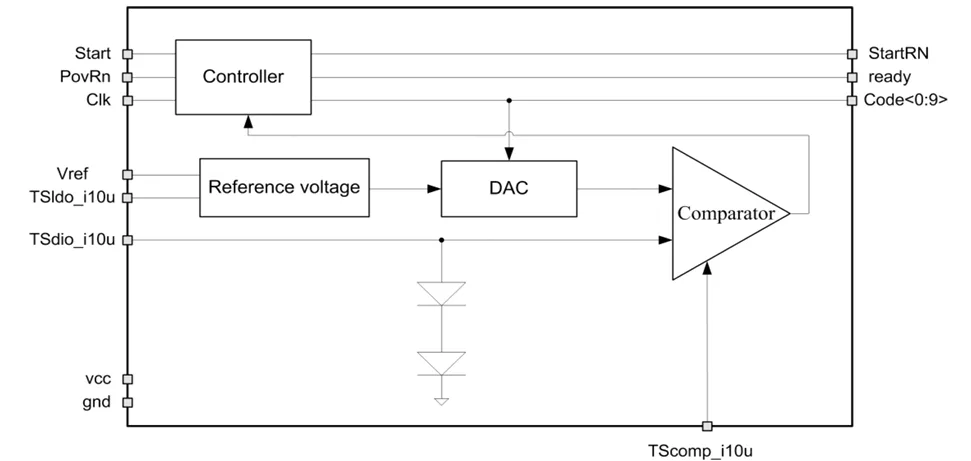

Block Diagram

065TSMC_TS_02 block diagram

Applications

  • On chip temperature measurement
  • Pseudostatic analog digitization
  • Sensitive analog circuit
  • Navigation receiver
  • High clock digital VLSI

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 65nm GP Silicon Proven

Specifications

Identity

Part Number
065TSMC_TS_02
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
