Temperature and Voltage Monitor with Interrupt on 12nm

The ODT-PVT-INT-001C-12 is an ultra-low power Temperature, Voltage and Process Monitor designed in a 12nm CMOS process.

Contact Provider Request Datasheet

Overview

The ODT-PVT-INT-001C-12 is an ultra-low power Temperature, Voltage and Process Monitor designed in a 12nm CMOS process. This IP operates over the entire temperature range of -40°C to 125°C.

The Temperature Monitor (TM) achieves ±4°C temperature accuracy without trim and ±1°C temperature accuracy after a single room temperature trim.

The Voltage Monitor (VM) supports four differential or single-ended inputs with a voltage range up to ±1.8V.

The IP has provision to program voltage and temperature thresholds. The INTERRUPT pin can be configured to indicate when either the voltage or temperature crosses the programmed thresholds.

A one-shot mode allows user to initiate an ondemand temperature or voltage measurement. When not operating, the entire block enters a low power standby mode.

Key features

  • ± 4°C temperature accuracy without trim
  • ± 1°C temperature accuracy after single room temperature trim
  • Voltage monitor supports both singleended and differential inputs, with 4:1 input mux.
  • Digital, 16-bit readout
  • Over & Under Temperature and Voltage detection
  • INTERRUPT signal output
  • Operational from -40°C to 125°C

Block Diagram

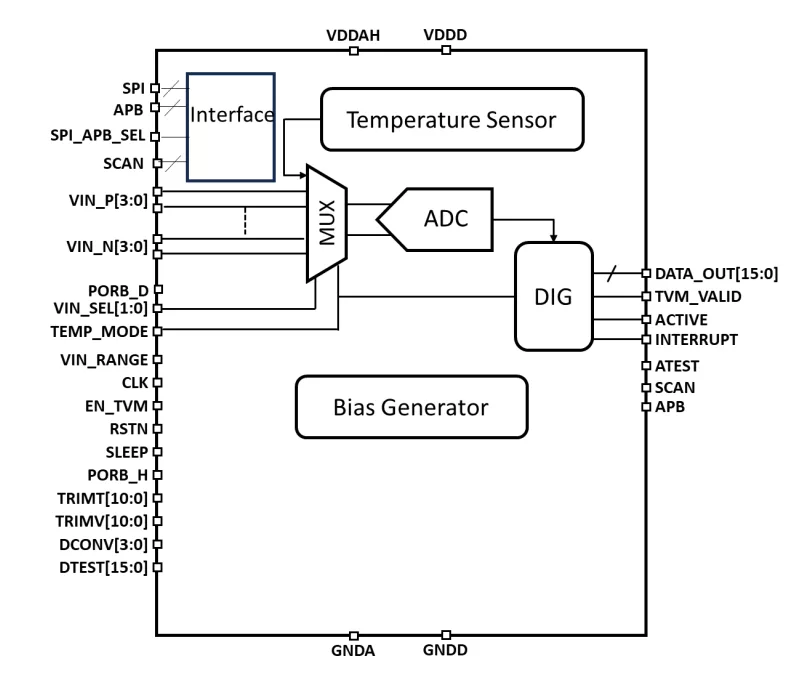

ODT-TVM-INT-001C-12 block diagram

Applications

  • SoC real time temperature and voltage monitoring
  • Battery management
  • Remote sensors and diagnostics
  • Portable medical diagnostics
  • Livestock health management
  • Wearable devices
  • Over and Under Temperature detection
  • Over and Under Voltage detection

What’s Included?

  • Datasheet
  • Hard Macro (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model
  • Integration and Customer Support

Specifications

Identity

Part Number
ODT-TVM-INT-001C-12
Vendor
Omni Design Technologies, Inc.

Provider

Omni Design Technologies, Inc.
HQ: USA
