Stand-Alone ESD Cell in GF 28nm
A GlobalFoundries 28nm Stand-Alone ESD Structure This ESD library is a silicon-proven set of discrete, pad-independent ESD clamps…
Overview
A GlobalFoundries 28nm Stand-Alone ESD Structure
This ESD library is a silicon-proven set of discrete, pad-independent ESD clamps for GlobalFoundries 28nm technology. The library is designed to provide robust ESD protection for power domains and low-speed signals in advanced SoCs where traditional pad-based protection is insufficient or impractical. This library enables direct insertion of ESD protection structures at the chip top level, offering flexible placement, scalable metallization, predictable ESD behavior without reliance on a full I/O library.
Technology & Process
| Parameter | Sepcs |
| Foundry | GlobalFoundries |
| Node | 28nm |
| Libray Type | Stand-alone ESD Cell |
| Integration | Direct top-level |
| Metals | Up to Metal 6 |
| Package | Flip-Chip |
Operating Conditions
- NominalVoltages: 1.8V clamp up to 2.0Vmax, 5Vclamp up to 6V max
- Signal Type: Power Domains, DC or very slow signal (<300ns slew rate for 5V clamp)
- ESD Function: Primary ESD protection for power and signal nets
- Latch-up robust wth optional N-well biasing
Supported Clamp Variants
- 1.8V nominal fail-safe clamp, availible in 2-PORT and 3-PORT top-metal configuration
- 5V nominal clamp for DC high-voltage supplies
Key features
- Stand-alone ESD clamps
- Two clamp option: 1.8V Fail-Safe Clamp and 5V Clamp
- Fail-Safe triggering behavior
- 2-PORT and preferred 3-PORT architecture
- Compact, metal-dense layout
- Optimized for dense routing, unconventional power entry, and sparse pad rings
Block Diagram

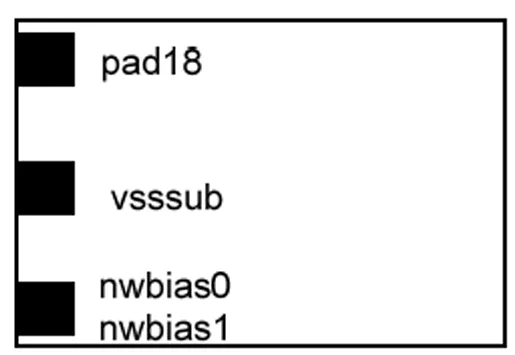

AG28 block diagram
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 28nm | 28 280 nm | Silicon Proven |
Specifications
Identity
Part Number
AG28
