SDRAM Memory Model
SDRAM Memory Model provides an smart way to verify the SDRAM component of a SOC or a ASIC.
Overview
SDRAM Memory Model provides an smart way to verify the SDRAM component of a SOC or a ASIC. The SmartDV's SDRAM memory model is fully compliant with standard SDRAM Specification and provides the following features. Better than Denali Memory Models.
SDRAM Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
SDRAM Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
Key features
- Supports SDRAM memory devices from all leading vendors.
- Supports 100% of SDRAM protocol standard 512Mb_sdr & HY57V56820FT-H
- Supports Internal banks for hiding row access/precharge
- Supports Programmable burst lengths: 1, 2, 4, 8, or full page
- Supports Auto precharge, includes concurrent auto precharge and auto refresh modes
- Supports Self refresh mode
- Supports Auto refresh
- Supports programmable clock frequency of operation
- Supports all types of timing and protocol violation detection
- Supports for All Mode registers programming
- Supports for Speed Grade
- 7E
- 75
- Supports all the SDRAM commands as per the 512Mb_sdr & HY57V56820FT-H
- Checks for following
- Check-points include power on, Initialization and power off rules,
- State based rules, Active Command rules,
- Read/Write Commands rules etc.
- All timing violations.
- Bus-accurate timing for min, max and typical values
- Notifies the test bench of significant events such as transactions, warnings, timing and protocol violations
- Constantly monitors SDRAM behavior during simulation
- Protocol checker fully compliant with SDRAM Specification 512Mb_sdr & HY57V56820FT-H
- Models, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations
- Built in functional coverage analysis
- Supports Callbacks, so that user can access the data observed by monitor.

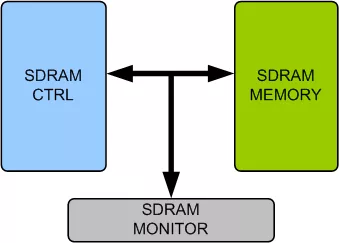

Block Diagram
SDRAM Memory Model block diagram
Benefits
- Faster test bench development and more complete verification of SDRAM designs.
- Simplifies results analysis.
- Integrates easily into OpenVera, System Verilog, System C, Verilog
- Runs in every major simulation environment
- Written in 100% SytemVerilog and VMM. So runs faster and easy to use with VMM test benches.
What’s Included?
- Complete regression suite containing all the SDRAM testcases.
- Complete UVM/OVM sequence library for SDRAM controller.
- Examples showing how to connect and usage of Model.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
SDRAM Memory Model
Vendor
SmartDV Technologies
Provider
SmartDV Technologies
