SAS INITIATOR IIP
The SAS Initiator IP core is fully compliant with Serial ATA SCSI 5.0 Specification.
Overview
The SAS Initiator IP core is fully compliant with Serial ATA SCSI 5.0 Specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. SAS Initiator IIP is proven in FPGA environment.The initiator interface of SAS can be simple interface or can be AMBA APB, AMBA AHB, AMBA AXI, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.
SAS INITIATOR IIP is supported natively in Verilog and VHDL
Key features
- Supports SPL 1.0/2.0/3.0/4.0/5.0 Specs
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to microprocessor/microcontroller devices
- Supports SAS 1.5,3,6,12 and 22.5 Gbps data transfer rates
- Supports SATA 1.5,3 and 6 Gbps data transfer rates
- Supports native 32bit PHY Interface
- Supports 8b/10b Encoding
- Supports 10 bit, 20 bit ,40 bit parallel interface
- Supports Narrow ports and wide ports
- Supports Identify and Reset sequences
- Supports SSP , SMP and STP protocols
- Supports Physical link rate tolerance management
- Supports STP, SSP& SMP Link layer Connections
- Selectable Primitive CONT and fill substitution processing
- Supports STP flow control.
- Supports SAS Dword mode and Packet mode
- Supports Forward error correction encoding & decoding.
- Supports Interleaved SPL Packet mode encoding & decoding.
- Complete dword synchronization,SPL packet synchronization and
- resynchronization phy layer state machines
- Supports link layer Rate matching for SAS Dword mode and Packet mode
- Supports Address frames
- Supports all PHY power conditions and management
- Supports DMA and PIO commands
- Device Signature returns Feature
- Supports SATA features
- Hardware support for
- 48-bit address set
- 8b/10b coding and decoding
- CRC generation and checking
- Auto insertion of HOLD primitives
- Native Command Queuing (NCQ)
- Port Multiplier, Port Selector
- First Party DMA (FPDMA)
- Implements the shadow register block and the serial ATA status and control registers
Block Diagram

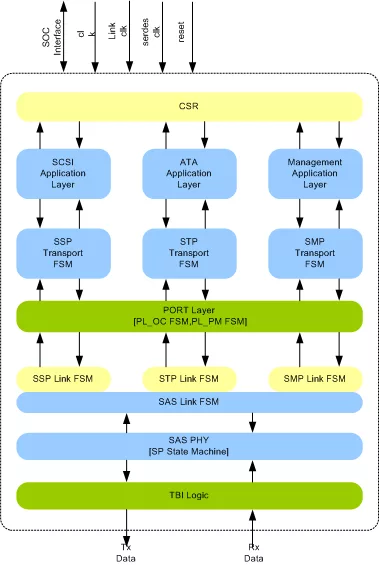

SAS Initiator Controller IIP block diagram
Benefits
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
What’s Included?
- The SAS Initiator interface is available in Source and netlist products.
- The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
SAS Initiator Controller IIP
Vendor
SmartDV Technologies
Type
Silicon IP
Provider
SmartDV Technologies
