The SAS Recorder IP Core provides an ready to use solution for high speed data recording applications.
Overview
The SAS Recorder IP Core provides an ready to use solution for high speed data recording applications. Simple interface guarantees fast time to market solutions.
ARCHITECTURE
Utilizing our SAS IP Core, the recorder can be configured to use 14 ports, depending on your needs. This allows for a flexible solution that can be matched to any need. The recorder can be used for oneoff recordings, or for continues recording with automatic wrap around.
Theoretical max bandwidth is 1.2 GBytes/sec per port, or 4.8 GBytes/sec total. Of course actual performance depends on the capabilities of the attached drives.
We include a FPGA based PHY, or the IP Core can interface to a standard SAS PHY from a 3rd party. The FPGA based PHY is targeted for Xilinx series 7 devices, with GTX and GTH transceivers. Our PHY includes all functions required to bring up the link all the way to 12G.
Key features
- High Speed Data Recording
- Up to 4 Ports
- SAS 1.5, 3.0, 6.0 and 12.0 Gbps support
- High Data Bandwidth
- Hardware managed command sequencing
- Full SAS interface
- AXI style streaming data interface
- Xilinx Transceiver based PHY
Block Diagram

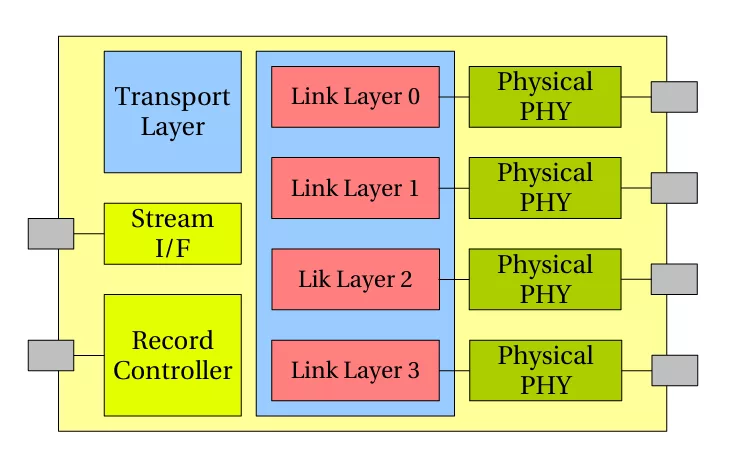

SAS_REC1 block diagram
Benefits
- Ready to use solution
- Fast Time to Market
- Plug and Play interface
Applications
- High Speed Data Recording
What’s Included?
- Verilog Source Code
- Documentation
- Technical Support
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
SAS_REC1
Vendor
ASICS World Services, LTD.
Type
Silicon IP
Provider
ASICS World Services, LTD.
ASICs World Services specialize in providing top-notch IP Cores and design services. We will assist you in any phase of the design cycle, or take your idea from the conceptual stage to final product.
With over 60 years of experience in the field, we have a long list of successfully completed projects.
Learn more about SAS IP core
