Low Power Comparator

The agileCMP_LP is a comparator suitable for use in any low power system.

Contact Provider Request Datasheet

Overview

The agileCMP_LP is a comparator suitable for use in any low power system. It is designed to provide a flexible range of comparison voltages suitable for many sensor interface designs. The agileCMP_LP consists of a voltage reference generator and comparator set at different threshold levels for multi-level detection and the output is not latched.

Agile Analog designs are based on tried and tested architectures to ensure reliability and functionality. Our design methodology is programmatic, systematic and repeatable leading to analog IP that is more verifiable, more robust and more reliable. Our methodology also allows us to quickly re-target our IP to different process options. We support all the major foundries including TSMC, GlobalFoundries, Intel Foundry, Samsung Foundry, UMC and Other Foundries.

Key features

  • Active current: 2.20mA (typical)
  •  Powered-down current: 9.8nA (typical)
  • Detection time: 2ms (typical)
  • Hysteresis: 16.5mV (typical)
  • Threshold step size: 56.25mV
  • Threshold accuracy: 4.5mV (max)
  • Silicon area: 0.013 mm2 in 16nm technology
  • PSRR: @f < 1MHz: 38.5dB (typical)
  • @f ≥ 1MHz: 27.9dB (typical)

Block Diagram

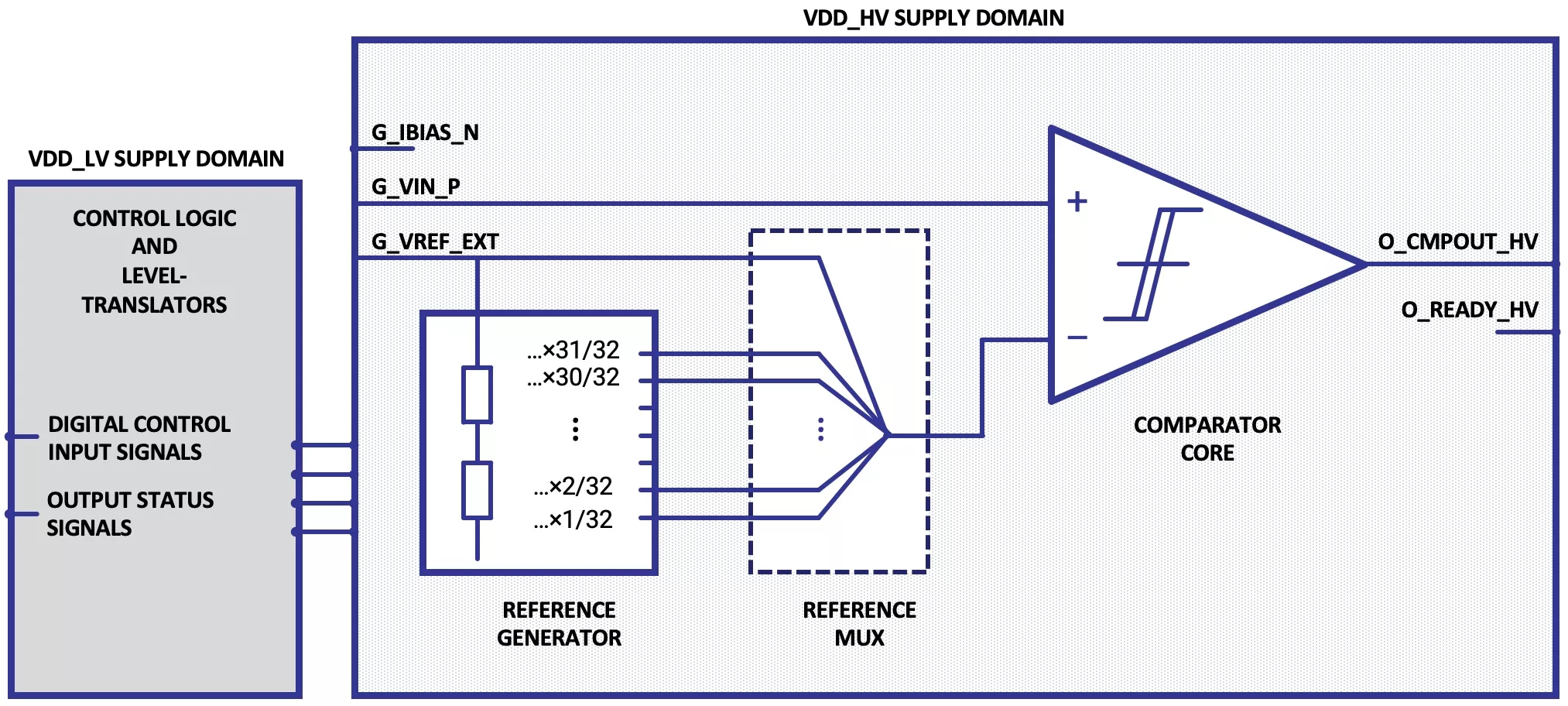

agileCMP_LP block diagram

Benefits

  • Best-in-class deliverables for easy and seamless integration: our engineers have extensive experience taking complex SoCs from design to mass production
  • We believe that success is not just measured by delivery of netlist and layout, rather it extends to mass-production and beyond
  • Automated design procedure accelerates design time and enables quick re-centering with latest PDK updates so you can tape out with the latest foundry models
  • Tried and tested architecture ensures reliability and functionality

Applications

  • IoT, Security, Automotive, AI, SoCs, ASICs

What’s Included?

  • Datasheet
  • Testing and Integration Guide
  • Verilog Models
  • Floorplan (LEF)
  • Timing models (LIB)
  • Netlist (CDL)
  • Layout (GDS)
  • Physical Verification Report
  • Design Report
