Vendor: NTLab Category: Power Management Unit

Power management unit

PMU is designed to supply embedded integrated circuits with stable and precise voltage and 1%-accurate clock frequency.

Contact Provider Request Datasheet
GlobalFoundries 55nm Pre-Silicon View all specifications

Overview

PMU is designed to supply embedded integrated circuits with stable and precise voltage and 1%-accurate clock frequency. It integrates 4 LDOs and 3 oscillators:



  •  “Always ON” LDO to supply circuits that are supposed to be always on;
  •  “Powered Down” LDO to supply digital circuits of “Powered Down” domain
  •  “Context Safe” LDO to supply digital circuits of “Context Safe” domain
  •  “Flash” LDO to supply flash memory
  •  1.024 MHz oscillator
  •  10 MHz oscillator
  •  100 MHz oscillator

All LDOs have controllable output voltage level and are complemented with VDD detectors to monitor output voltage value. All LDOs may function in two modes: full power mode and ECO mode to save battery charge if high performance of the system is not required.

Key features

  • Global Foundries CMOS 55 nm
  • Input Voltage Range: +1.6V to +3.6V
  • Adjustable Output Voltage
  • No discrete filtering capacitors required (cap-less solution)
  • Embedded Power on Reset module
  • Low Quiescent Current
  • Supported foundries: TSMC, UMC, Global Foundries, SMIC

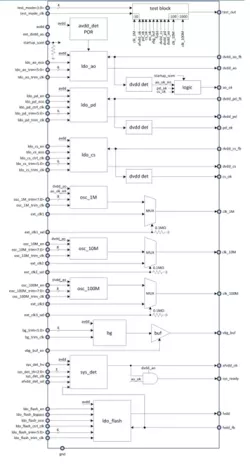

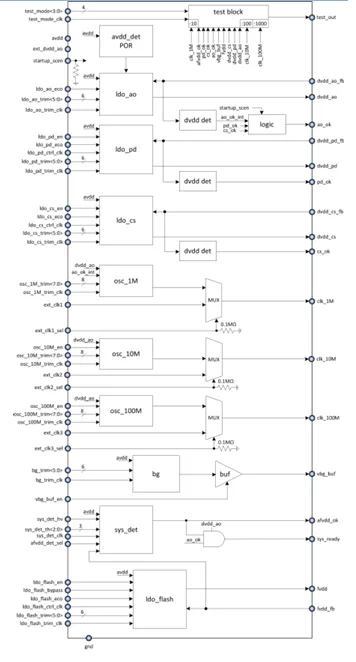

Block Diagram

055GF_PMU_01 block diagram

Applications

  • Battery-Powered equipment
  • Power solutions
  • Clocking

What’s Included?

  • Schematic or NetList
  • Abstract view (.lef and .lib files)
  • Layout (optional)
  • Verilog behavior model
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 55nm 55 550 nm Pre-Silicon

Specifications

Identity

Part Number
055GF_PMU_01
Vendor
NTLab

Provider

NTLab
HQ: Lithuania
NTLab is a vertically integrated microelectronics design center. It has 70+ experienced and qualified engineers. NTLab specializes in the designing of mixed-signal and RF ICs and Systems-on-Chip. It has a wide range of own silicon-verified IP blocks: processor cores, interfaces, analog and high-frequency PHYs, etc., thus allowing customized design to be fast and predictable. In-company unique combination of competences in digital, analog and RF circuits and embedded software enables NTLab to participate in the projects that require deep research and utilize most sophisticated and advanced techniques: multi-system GPS/GLONASS/Galileo/BeiDou/NavIC(IRNSS)/QZSS/SBAS navigation, RF ID, wireless communications, etc. All designed ICs are provided with test and development tools, as well as with reference software. NTLab offers a wide range of silicon proven analog/mixed-signal IPs in 0.35µm, 0.25 µm, 0.18 µm, 0.13 µm, 0.09 µm, 65nm, 55nm, 40nm, 28nm, 22 nm CMOS and SiGe BiCMOS processes. These IPs are suitable for devices targeted both consumer and industrial markets. Most of these IPs have been proven in silicon on the foundries: Samsung, UMC, GlobalFoundries, SMIC, VIS, Tower, X-FAB, iHP, AMS, SilTerra, STMicroelectronics, Winfoundry.
