LTE Cat-0 turbo decoder

TC1770 is a IoT-optimized turbo decoder Core compliant with LTE Cat-0 / Cat-M (release 12 and release 13).

Contact Provider Request Datasheet

Overview

TC1770 is a IoT-optimized turbo decoder Core compliant with LTE Cat-0 / Cat-M (release 12 and release 13). This Core incorporates LTE rate matching and an efficient HARQ combining algorithm thats makes it ideal for operation in the range of low SNR. Its small footprint and low power consumption enable to build a very competitive solution compared to a software-only based solution.

Key features

  • Covers: Inverse rate matching, HARQ combining, CTC decoding, CRC check
  • Maximal payload block size selectable at synthesis
  • Throughput range 1 - 10 Mbits/s
  • Efficient early stopping for reduced power consumption
  • Compacting of HARQ-combined streams - saves HARQ buffer memory
  • Channel BER estimator
  • Flexible quantization level selectable at synthesis
  • Block-by-block change of configuration (block size, number of iterations, ...)
  • Clock gating scheme for low power consumption
  • AXI stream interface

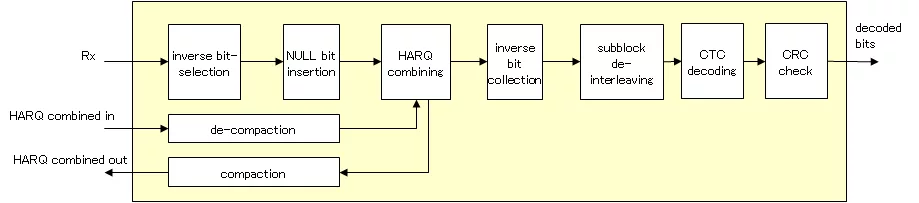

Block Diagram

TC1770 block diagram

Applications

  • LTE Cat-0
  • LTE Cat-M
  • IoT

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
TC1770
Vendor
TurboConcept

Provider

TurboConcept
HQ: FRANCE
TurboConcept is a industry-recognized and reliable partner for IP Core providing of advanced FEC modules (turbo codes, Polar codes, LDPC codes). We offer best-in-class solutions for 4G-LTE/ 5G NR wireless, satellite communications, backhaul, domestic and governmental systems.
