Vendor: Canova Tech Srl Category: DC/DC Converter

Li-Ion Battery Boost

CT21104 is high efficiency DCDC boost converter designed work with Li-Ion batteries.

Contact Provider Request Datasheet

Overview

CT21104 is high efficiency DCDC boost converter designed work with Li-Ion batteries.

The boost converter is optimized for current load up to 20mA and 3.3V to 15V selectable output voltage (2V of step).

Regulation is performed fixed frequency voltage mode PWM technique.

The CT21104 is designed to work with best efficiency in Discontinuous Conduction Mode (DCM).

Key features

  • Input Voltage Range: 1.62V to 5.5V
  • 20mA of Load Current
  • 3V to 15V Selectable Output (2V of Step)
  • Voltage regulation performed according fixed 600KHz frequency voltage mode PWM technique
  • 6mV ripple output voltage with 10uF x5R output capacitor
  • 75% of efficiency at 20mA of load with 1.8V input and 15V output

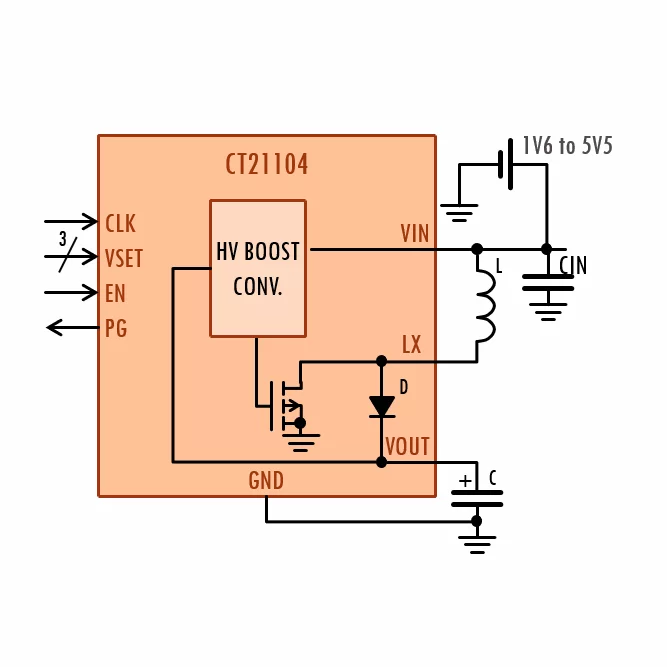

Block Diagram

CT21104 block diagram

Applications

  • Li-Ion battery supplied devices

Specifications

Identity

Part Number
CT21104
Vendor
Canova Tech Srl
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Canova Tech Srl
HQ: Italy
Based in Padova, Italy, Canova Tech has been providing Standards and Custom IP plus Design Services for full IC Integration, to a global client base of tier-one companies since 2005. Our Engineers attend and contribute to several Standards, including IEEE 802.3 initiatives, OPEN Alliance and USB IF. We understand and implement Customer requirements from concept definition down to transfer to production. Our Customers benefit directly from our insight into the market direction through our fundamental values, Technology Innovation, State of the Art mixed-signal Design Methodology and the Quality of Deliverables.
Contact Canova Tech Srl
