All Silicon Charge Pump for X-FAB 180nm

Fraunhofer IPMS offers an all silicon charge pump module which does not need any further external components.

Contact Provider Request Datasheet
X-FAB 180nm XP018 Available on request View all specifications

Overview

Fraunhofer IPMS offers an all silicon charge pump module which does not need any further external components. Efficiency is up to 97%.

Key features

  • Silicon proven in X-FAB XP018
  • Input Voltage: 2.5 – 3.3V
  • Output Voltage: 3 – 35V
  • Up to 97% efficiency
  • 60% efficiency for 3V to 24V operation @ 10mW output power
  • No external components

Block Diagram

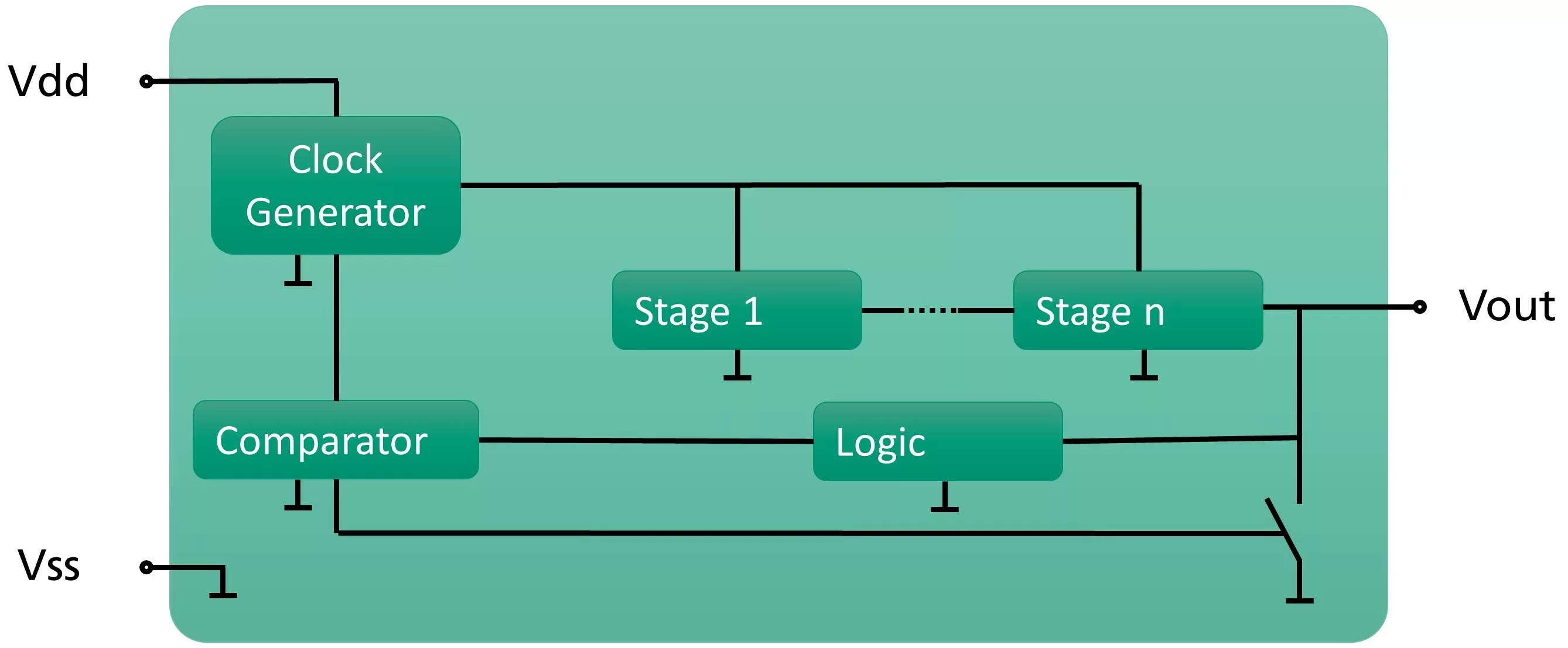

IPMS-ALLCP block diagram

Benefits

  • Low power high voltage systems
  • Low power driver circuits
  • Battery-free IoT devices
  • Wireless sensor modules
  • Sensor modules with long lifetime

Applications

  • IoT devices
  • Wireless modules
  • Sensor modules
  • Medical devices

What’s Included?

  • Datasheet & integration guide
  • HDL model
  • GDSII layout
  • Customer support

Silicon Options

Foundry Node Process Maturity
X-FAB 180nm XP018 Available on request

Specifications

Identity

Part Number
IPMS-ALLCP
Vendor
Fraunhofer IPMS
Type
Silicon IP

Files

Product Sheet Download
