Vendor: Dolphin Semiconductor Category: DC/DC Converter

Nano power DC-DC converter with ultra-low quiescent current and high efficiency at light load in TSMC 40uLPeF

DCDC-ULP-LS-1.62-3.63-0.6-2.5.01_TSMC_40_ULPeF is a Nano power DC-DC converter in TSMC 40uLPeF with ultra-low quiescent current a…

Contact Provider Request Datasheet
TSMC 40nm ULP View all specifications

Overview

DCDC-ULP-LS-1.62-3.63-0.6-2.5.01_TSMC_40_ULPeF is a Nano power DC-DC converter in TSMC 40uLPeF with ultra-low quiescent current and high efficiency at light load, supporting 1.62 V to 3.63 V input voltage.

PARAMETERS CONDITION

Minimum value

Typical value

Maximum value

Input Voltage

 - 1.62 V   3.63 V

Output Voltage

 - 0.6 V   2.5 V

Output current configuration

 - - 200 mA;400 mA;600 mA -

Quiescent current typical value

 I200HDO - 450 nA -

Accuracy

   - - 3%

Efficiency

 VREG=1.8V - - 88%

Key features

  • 350 nA quiescent current (for 200 mA load configuration)
  • 150 nA shutdown current (for 200 mA load configuration)
  • Up to 87% peak efficiency (for Vin=3.3 V and Vout=1.8 V)
  • Up to 83% peak efficiency (for Vin=3.3 V and Vout=0.8 V)
  • 80% efficiency down to 0.1% of Imax (for 200 mA load configuration)
  • 73% efficiency for Iload=10 uA (for 200 mA load configuration)
  • 3% output voltage DC accuracy

Block Diagram

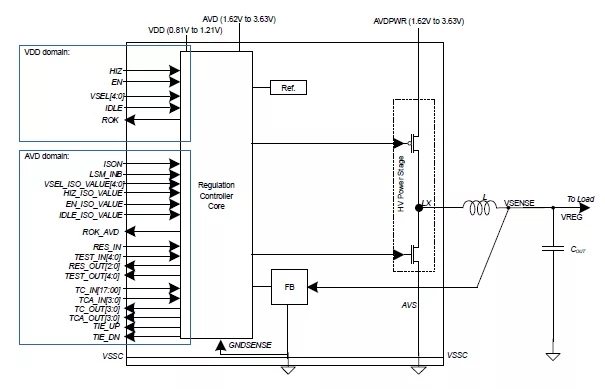

DCDC-ULP-LS-1.62-3.63-0.6-2.5.01_TSMC_40_ULPeF block diagram

Benefits

  • Ultra-low quiescent minimizing the current consumption in deep-sleep mode
  • High efficiency at light load to extend the battery lifetime
  • Low ripple level to supply noise sensitive loads
  • 1 uH inductor
  • Ultra-small area for reduced silicon cost

Applications

  • Bluetooth
  • Cellular IoT
  • GNSS
  • Hearing aids
  • NB-IoT
  • Smart Headset
  • Smart Speaker
  • TWS Earpods
  • ULP MCU
  • Voice-controlled devices
  • Voice Assistant
  • WiFi

Silicon Options

Foundry Node Process Maturity
TSMC 40nm ULP —

Specifications

Identity

Part Number
DCDC-ULP-LS-1.62-3.63-0.6-2.5.01_TSMC_40_ULPeF
Vendor
Dolphin Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
