High Speed Inmarsat Compatible Turbo Decoder

This is an Inmarsat compatible 16 state error control turbo decoder.

Contact Provider Request Datasheet

Overview

This is an Inmarsat compatible 16 state error control turbo decoder. The PCD04I offers unparalleled speed, performance, low complexity and features compared to other available decoder cores.

Key features

  • Turbo Decoder:
    • 16 state Inmarsat compatible
    • Rate 1/2, 1/3, 1/4 or 1/5
    • Data lengths from 1 to 4092, 6140, 12284 or 22524 bits
    • External interleaver address table
    • Up to 342 MHz internal clock
    • Up to 32.4 Mbit/s with 5 decoder iterations (log-MAP)
    • 6-bit signed magnitude input data
    • Log-MAP or max-log-MAP constituent decoder algorithms
    • Up to 128 iterations in 1/2 iteration steps
    • Power efficient early stopping
    • Extrinsic information output with optional scaling and limiting
    • Estimated channel error output
    • Free simulation software
  • Viterbi Decoder (Optional):
    • 64 or 256 state (constraint length 7 or 9)
    • Rate 1/2, 1/3 or 1/4
    • Block length from 1 to 32760 (256 state) or 32762 (64 state) bits
    • Up to 7.9 Mbit/s (256 state) or 27.0 Mbit/s (64 state)
    • 6-bit signed magnitude input data
    • Estimated channel error output
  • Available as VHDL core for AMD-Xilinx FPGAs under SignOnce IP License. ASIC, Intel/Altera, Lattice and Microsemi cores available on request.

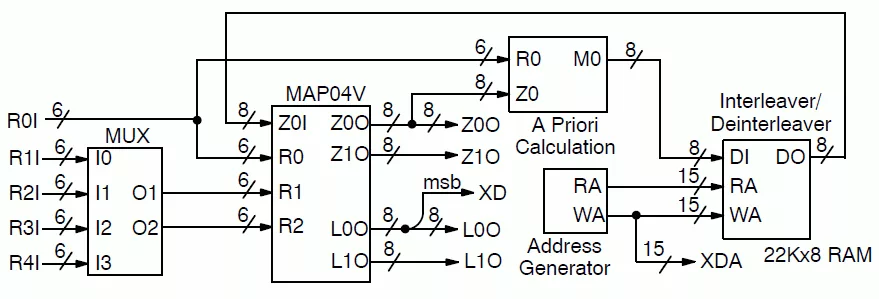

Block Diagram

PCD04I block diagram

What’s Included?

  • VHDL Core
  • Test vector generation software

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
PCD04I
Vendor
Small World Communications
Type
Silicon IP

Provider

Small World Communications
HQ: Australia
Small World Communications was started in January 1997 and is located in Adelaide, Australia. We specialise in error control decoder products for programmable gate arrays.
