Vendor: Cadence Design Systems, Inc. Category: DSP Core

Versatile, Ultra-Low-Power DSP for Audio, Voice, Vision, and AI

Smallest, ultra-low-energy DSP for always-on sensor fusion, always-listening voice trigger, and Bluetooth/BLE codecs The Cadence®…

Contact Provider Request Datasheet

Overview

Ultra-low-power always-on audio, voice, imaging, and AI inferencing

The Cadence Tensilica HiFi 1s DSP provides three benefits. First, it supports auto-vectorization by compiler to eliminate the need for hand-optimization, thereby opening it to every embedded programmer. Second, it enhances the always-on AI capability to allow higher-performance ML algorithms to run on an ultra-low power DSP. Third, it adds imaging ISA to support lightweight always-on vision processing.

Auto-vectorization support unburdens the programmer from expert-level hand-optimization, opening the HiFi 1s DSP to a vast pool of non-DSP programmers, lowering development costs, and accelerating time to market. The expanded AI and imaging ISA allow lightweight vision and machine learning applications to run at ultra-low power levels. Double-precision ISA helps modern audio programs run efficiently.

Feature

HiFi 1s

Load Units

1

VLIW Slots

2

Scalar Operations

2 slots

Accumulator Width

64-bit

Auto-Vectorization

Yes

Fixed Pt MACs per Cycle

32x32

1

32x16

2

16x16

4

8x16

8

8x8

8

SP/HP FPU (integrated, optional)

2x4-way/2x8-way

DP FPU (integrated, optional)

Scalar

Imaging/Vision ISA

Yes

Expanded Instructions for NN

Yes

Arithmetic decoding

Yes

AVS (Huffman and bitstream operation)

Yes

Coremark

5.25

Key features

Small Battery-Efficient DSP for Always-On Audio, Vision, and AI/ML

  • AI acceleration with 8 8x8 and 8x16 MACs and dedicated ISA
  • Imaging ISA and 8 8-bit (and 8x16) MACs for lightweight vision applications
  • Double-precision acceleration hardware for audio and vision math functions
  • Auto-vectorization support for porting efficiency and fast TTM

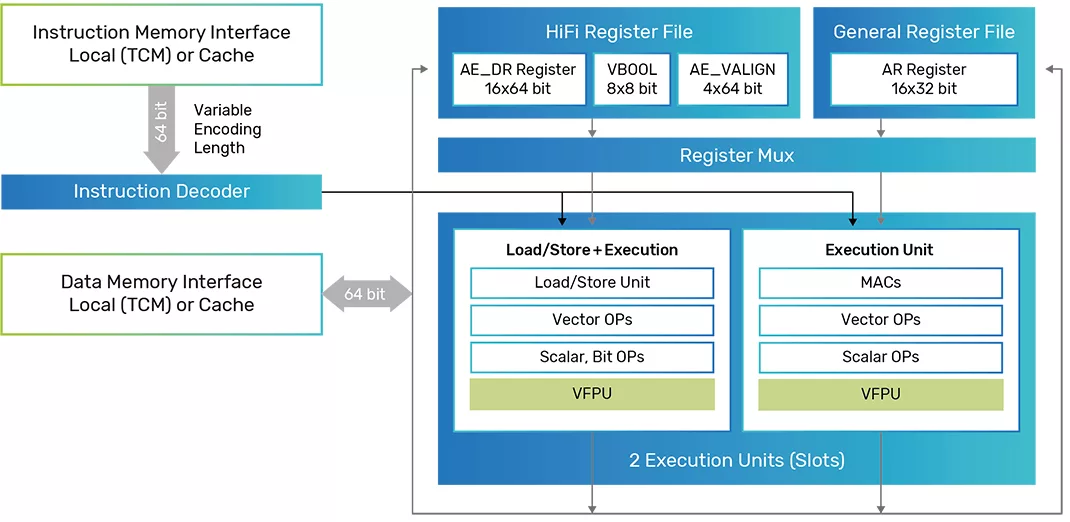

Block Diagram

Click to open fullscreen

Benefits

Auto-Vectorization

Enables the compiler to automatically vectorize data arrays to utilize the SIMD structure of HiFi 1s DSP, eliminates the need for hand-optimization

Expanded AI and Base Platform Performance

Dedicated MACs and ISA enhancing ML/AI and upgraded base platform to LX8, allowing richer applications to run at ultra-low power levels

Lightweight Imaging and Vision

Imaging targeted ISA and MACs for always-on lightweight vision applications to run standalone or in conjunction with a Vision DSP

Double-Precision Floating-Point

Greatly accelerates double-precision math functions found in audio and voice code, obviating the need to tradeoff precision with range
