Vendor: Canova Tech Srl Category: DC/DC Converter

Harvesting Boost

CT21103 is a specialized DCDC boost charger designed to transfer, with the highest efficiency, the energy collected by the majori…

Contact Provider Request Datasheet

Overview

CT21103 is a specialized DCDC boost charger designed to transfer, with the highest efficiency, the energy collected by the majority of DC energy harvesting transducers. It can work with supply voltage as low as 0.4V.

Best startup operations can be achieved by proper selection of two external capacitors. Maximum Peak Power Tracking (MPPT) strategies can be realized by means of an internal or external resistor ladder and an external capacitor.

Key features

  • Input Voltage Range: 0.3V to 5.5V
  • Input Impedance Range: 2Ω to 100KΩ
  • Analog MPPT
  • Programmable output voltage upto 5.5V
  • Max Output Current 30mA

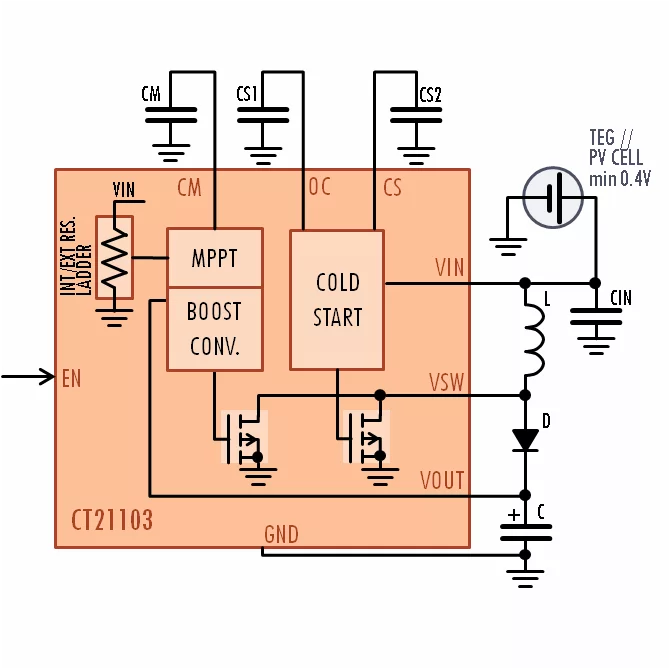

Block Diagram

CT21103 block diagram

Applications

  • Li-Ion battery supplied devices

Specifications

Identity

Part Number
CT21103
Vendor
Canova Tech Srl
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Canova Tech Srl
HQ: Italy
Based in Padova, Italy, Canova Tech has been providing Standards and Custom IP plus Design Services for full IC Integration, to a global client base of tier-one companies since 2005. Our Engineers attend and contribute to several Standards, including IEEE 802.3 initiatives, OPEN Alliance and USB IF. We understand and implement Customer requirements from concept definition down to transfer to production. Our Customers benefit directly from our insight into the market direction through our fundamental values, Technology Innovation, State of the Art mixed-signal Design Methodology and the Quality of Deliverables.
Contact Canova Tech Srl
