GF 22FDX combo voltage regulator combining a high efficiency DC-DC for operation in normal mode and an ultra-low quiescent uLDO to supply AON domain during sleep mode

The RAR-eSR-qLR Retention Alternating Regulator combines two regulation sub-components: a high-efficiency switching regulator (eS…

Contact Provider Request Datasheet
GlobalFoundries 22nm FDX In Production View all specifications

Overview

The RAR-eSR-qLR Retention Alternating Regulator combines two regulation sub-components: a high-efficiency switching regulator (eSR) and an ultra low quiescent linear regulator (qLR). A Regulation Control Unit (RCU) manages booting and transitions between each regulation functions.

Key features

  • Perfect fit for battery-powered IoT applications that require both high-efficiency during active mode and ultra-low power consumption in AON domain during sleep and deep sleep mode
  • Support of input voltage from 1.9V to 5.5V (Li-Ion, USB supplies)
  • Embedded RCU (Regulator Control Unit) to manage booting and mode transitions and to ensure data integrity
  • Configurable output current to fit the application

Block Diagram

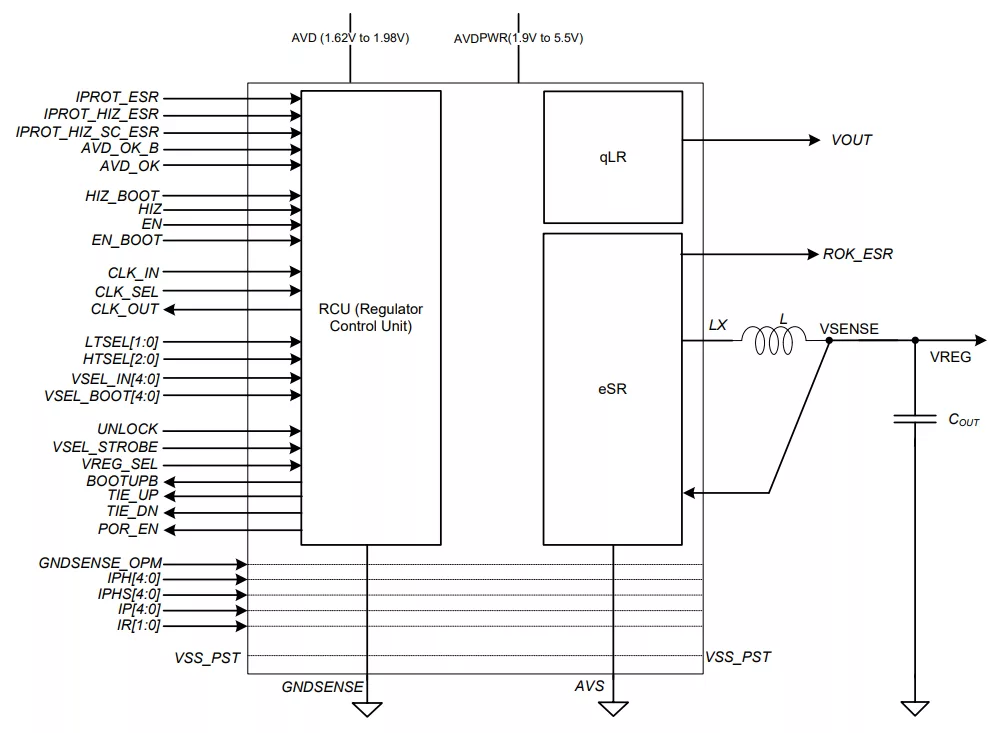

RAR-eSR-qLR-OV-LB-ref-1.9-5.5-0.5-3.3.08_GF_22_FDX block diagram

Files

Product Sheet Download
