Vendor: T2M GmbH Category: Single-Protocol PHY

GbE (10/100/1000 Base-T) PHY IP, Silicon Proven in TSMC 28HPC+

For Gigabit 10/100/1000 Ethernet applications, the GPHY is a integrated single chip.

Contact Provider Request Datasheet
TSMC 28nm HPC+ In Production View all specifications

Overview

For Gigabit 10/100/1000 Ethernet applications, the GPHY is a highly integrated single chip. It is a singleport, IEEE 802.3u/ab compatible, power efficient Giga Ethernet physical layer transceiver. It can operate in 10BASE Te, 100BASE-TX, and 1000BASE-T modes. This GPHY uses either RGMII or GMII to connect to the Media Access Control Layer (MAC). It could support UTP5/UTP3 cable for 10BASE-Te Ethernet or Unshielded Twisted Pair Category 5 Cable (UTP5) for 100BASE-TX Fast Ethernet and 1000BASE-T Giga Ethernet. It includes the Physical Coding Sublayer (PCS), Physical Medium Attachment Layer (PMA), and Twisted Pair Physical Medium Dependent Sub-layer (TP-PMD, 100BASE-TX only) as well as all of the physical layer functionality for 1000BASE-T as described by IEEE 802.3ab and 100BASE-TX, respectively. Additionally, this GPHY has a strong automated negotiation feature, automatic media speed- duplex selection, and protocol selection.

Key features

  • IEEE 802.3-2008, IEEE 802.3az fully standards compliant
  • IEEE 1588-2008 support
  • BroadR-Reach™ support
  • Dual port MAC interface: GMII (10/100/1000BASE-T), MII (10/100BASE-T).
  • Auto-negotiation support
  • Automatic detection and correction of pair swaps (Auto-MDIX), pair skew and pair polarity
  • 6 different operating modes: 1000BASE-T Full Duplex and Half Duplex, 100BASE-TX Full Duplex and Half Duplex, 10BASE-T Full Duplex and Half Duplex
  • Management interface
  • Baseline wander compensation
  • On-chip transmit wave-shaping
  • On-chip hybrid circuit
  • 10KB jumbo frames
  • Internal, external and remote loop back
  • Hardware configuration for default operation
  • Power down mode, interrupt support
  • IEEE 1500 support for SoC testing integration
  • LED indication: link mode, status, speed, activity, and collision
  • Silicon Proven in TSMC 28nm HPC+

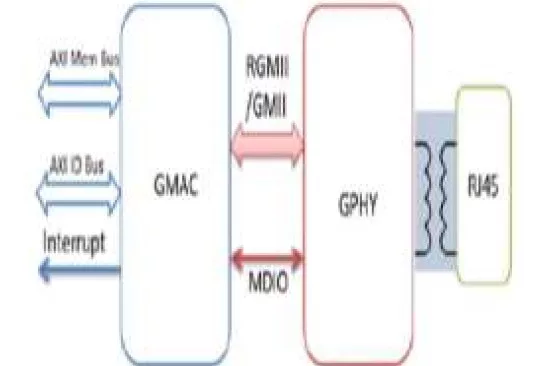

Block Diagram

GbE (10/100/1000 Base-T) PHY IP in 28HPCP block diagram

What’s Included?

  • Detailed Datasheet
  • Verilog behaviour model (A) for simulation
  • Liberty (db./.lib) for synthesis, STA, and equivalence checking
  • CTL / CTLDB for DFT
  • SPF (Standard Test Interface Language (STIL) Procedure File) for ATPG
  • LEF for APR
  • CDL for LVS connection

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ In Production

Specifications

Identity

Part Number
GbE (10/100/1000 Base-T) PHY IP in 28HPCP
Vendor
T2M GmbH

Provider

T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets. T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules. With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
Contact T2M GmbH
