Vendor: SKAIChips Category: PLL

Frac-N PLL on Samsung 28nm LN28FDS

PLL2860X is a 1.8V/1.0V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis.

Contact Provider Request Datasheet
Samsung 28nm View all specifications

Overview

PLL2860X is a 1.8V/1.0V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis.

It consists of a phase frequency detector (PFD), a charge pump, a voltage-controlled oscillator (VCO), a 6-bit pre divider, a 10-bit main-divider, a 3-bit scaler, a delta-sigma modulator (DSM) and an automatic frequency control (AFC).

Key features

  • Dual power supply of 1.8V±10% and 1.1V+5% ~1.0V-10%
  • Operating junction temperature(TJ): -40°C ~ 125°C
  • Output frequency range: 19.5MHz ~ 2.5GHz
  • Duty ratio: 45 ~ 55%
  • Power down mode
  • Bypass mode (FOUT = FIN)
  • Programmable dividers
  • Glitch-free scaler
  • On-chip loop filter

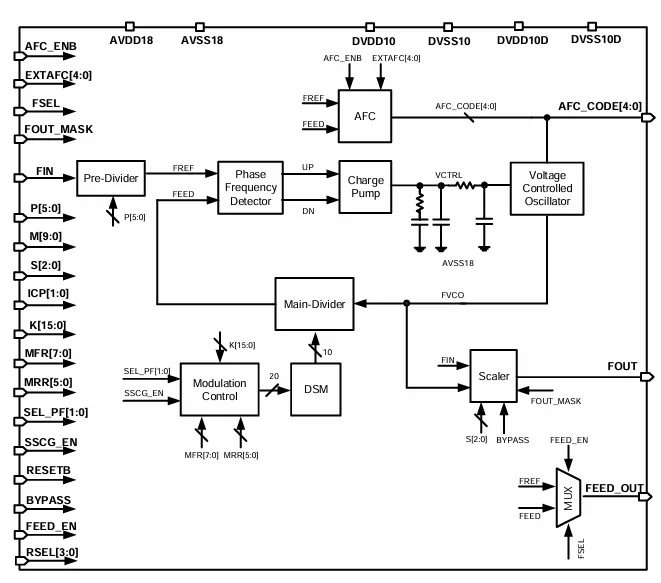

Block Diagram

PLL2860X block diagram

Benefits

  • Glitch-free scaler
  • Low Jitter
  • Low Power

Applications

  • Mobile/Consumer

What’s Included?

  • FE(Front-End) : LEF, LIBERTY, MODEL, TB FUNCTION
  • BE(Back-End) : CIR, DFM, DRC, GDS, LVS

Silicon Options

Foundry Node Process Maturity
Samsung 28nm 28nm 280 nm —

Specifications

Identity

Part Number
PLL2860X
Vendor
SKAIChips
Type
Silicon IP

Provider

SKAIChips
HQ: Republic of Korea
Creative and Innovative IC Product Development at a World-Class Level As the Fourth Industrial Revolution calls for innovative IC supplies to meet new technological demands, SKAIChips will maximize customer satisfaction and contribute to improved profitability for our partners and shareholders by producing applied products through our RF Solution, Power Solution, and AI Solution. Furthermore, we will continue to strive toward becoming a global enterprise with differentiated technological expertise, driven by creative ideas and unwavering research and development.
Contact SKAIChips
