Vendor: MVD Cores Category: Broadcast

ETR101290 IP core (Checks MPEG TS stream conformity to ETSI TR 101 290 V1.4.1 (2020-06))

The ETR101290 IP core allows to check MPEG TS stream conformity to ETSI TR 101 290 V1.4.1 (2020-06) • ETR101290 is CPU programmab…

Contact Provider Request Datasheet

Overview

The ETR101290 IP core allows to check MPEG TS stream conformity to ETSI TR 101 290 V1.4.1 (2020-06)

• ETR101290 is CPU programmable
• It includes all the processing stages to analyze PSI/SI tables and ETR101290 errors
• Each subpart of any priority item can be analyzed or not
• An output event signal can inform a CPU of a new incoming error
• Configurable output UART can log selected detected errors

Key features

  • Drop-in module for Spartan®-6, Virtex®-6, 7 Series and later FPGA families
  • DVB compliant
  • Auto adaptive and real time PSI/SI analysis
  • Manage up to 124 services and all PID values
  • For priority 1 (all), 2 (excepted PCR) and 3 (3.1/3.2; 3.4 to 3.6)
  • Configurable analysis authorization
  • Configurable UART output log
  • Full synthesizable RTL VHDL design (not delivered) for easy customization
  • Design delivered as Netlist

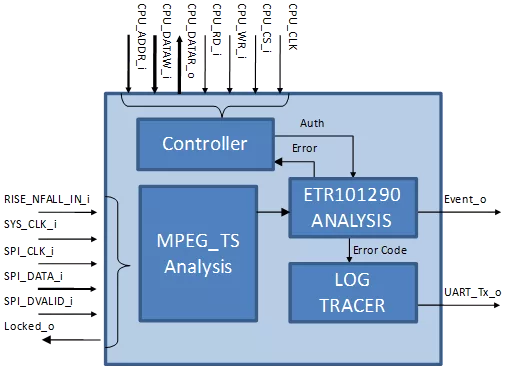

Block Diagram

MVD_ETR101290_NET block diagram

Applications

  • The MVD DVB ETR101290 core can be used to check the conformity of a DVB MPEG TS stream to the ETR101290 standard

What’s Included?

  • VHDL source code : can be delivered as an option under NDA and other specific clauses

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
MVD_ETR101290_NET
Vendor
MVD Cores
Type
Silicon IP

Provider

MVD Cores
HQ: France
MVD Cores is an engineering team highly specialized in Digital Video Broadcasting (DVB) and FPGA technologies. We provide IP cores for Processing, Transporting and Transmission of MPEG, DVB, ATSC & IPTV standards for Xilinx FPGAs. The products and services catalog contains a wide range of on-the-shelf IPs to build solutions to carry MPEG-TS to RF. Our IPs cover almost all worldwide standards of current technologies for broadcasting over Digital Terrestrial Television (DTT), Cable TV (CATV) and Satellite.
