Vendor: Qbit labs Category: Broadcast

DVBS2

Technical specifications Modulation QPSK, 8PSK, 16APSK Roll-off Factor 0.2, 0.25, 0.35 Symbol Rate 1 to 300 Msym/sec (QPSK and 8P…

Contact Provider Request Datasheet

Overview

Technical specifications


Modulation QPSK, 8PSK, 16APSK
Roll-off Factor 0.2, 0.25, 0.35
Symbol Rate 1 to 300 Msym/sec (QPSK and 8PSK)
Symbol Rate 1 to 200 Msym/sec (16APSK)
TX/RX Symbol Rate Step Size 100 Ksym/sec
Configuration TX/RX Independently Configurable
FEC Block Size 64 or 16K
Receiver ACM/VCM Yes
Capable .
Doppler Tolerance 2 Varies
Minimum Bit Rate 500 Kbps (QPSK ¼)

Key features

  •  A flexible input stream adapter, suitable for operation with single and multiple input streams of various formats (packetized or    continuous)
  •  A powerful FEC system based on low-density parity check (LDPC) codes concatenated with BCH codes, allowing quasi-error-free    operation at approx. 0.7 dB to 1 dB from the Shannon limit, depending on the transmission mode
  •  A wide range of code rates from 1/4 up to 9/10
  •  Four constellations (QPSK, 8PSK, 16APSK, 32APSK), ranging in spectrum efficiency from 2 bit/s/Hz to 5 bit/s/Hz, optimized for    operation over non-linear transponders
  •  A set of three spectrum shapes with roll-off factors of 0.35, 0.25 and 0.20
  •  Variable coding and modulation (VCM) may be applied in order to provide different levels of error protection to different service    components (e.g. SDTV and HDTV, audio, multimedia)
  •  In the case of interactive and point-to-point applications, the VCM functionality may be combined with the use of return channels to    achieve adaptive coding and modulation (ACM). This methods provides the best-suited channel protection and dynamic link adaptation    to  propagation conditions, targeting each individual receiving terminal

Block Diagram

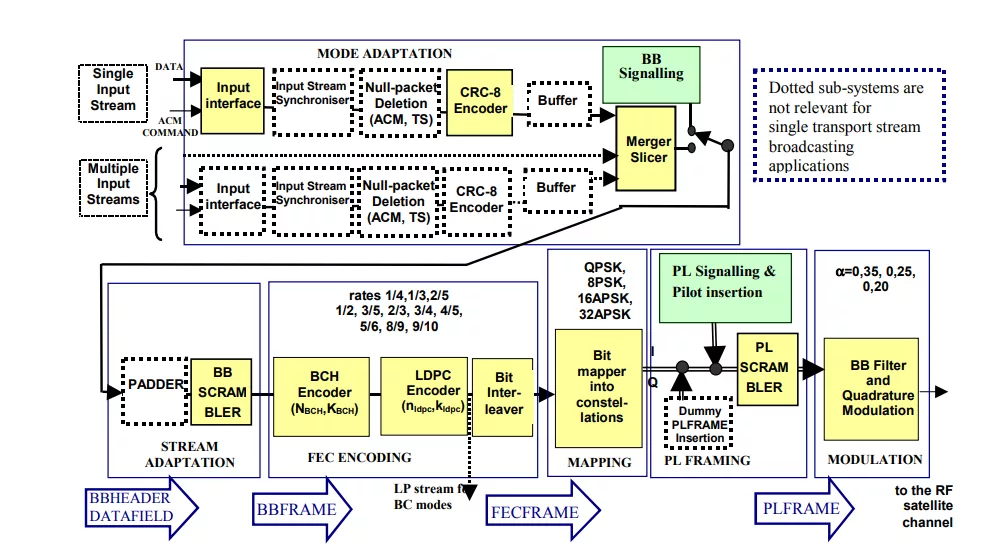

DVBS2 block diagram

Applications

  •  DVB‑S2 is intended to provide Direct‑To‑Home (DTH) services for consumer Integrated Receiver Decoder (IRD), as well as collective    antenna systems (Satellite Master Antenna Television ‑ SMATV) and cable television headend stations
  • DVB-S2 includes provision for Digital TV Contribution and Satellite News Gathering (DTVC/DSNG) applications by satellite, consisting of point to point or point to multipoint transmissions, connecting fixed or transportable uplink and receiving stations
