ADS-B 978 MHz (UAT) Receiver

ADS-B (UAT) receiver offers a comprehensive solution for the reception of flight, traffic and weather information.

Contact Provider Request Datasheet

Overview

ADS-B (UAT) receiver offers a comprehensive solution for the reception of flight, traffic and weather information. Compatible with all FPGA, SoC and ASIC devices, the circuit has been design proven and field tested, clocking over 500 flight hours. Complies with the RTCA DO-282B.

Key features

  • Automatic Dependent Surveillance-Broadcast ADS-B (UAT) Receiver
  • Compatible with the UAT specification operating at 978 MHz (RTCA DO-282B)
  • Decodes all UAT messages including: GROUND, LONG and SHORT
  • Reception of all weather and traffic information (e.g. FIS-B and TIS-B)
  • Decodes all ground uplink weather information (e.g. NEXRAD, METARs, TAFs, PIREPs, TFRs)
  • Configurable FSK demodulator permits both baseband and IF operation
  • Precision channel filter with programmable bandwidth settings
  • Reed-Solomon decoder detects and corrects errors in the received messages
  • System parameters may be modified on request (e.g. sample frequency, IF frequency, user I/O)
  • Flexible choice of output message interfaces such as: UART, SPI, AXI4-stream or fully custom
  • Design proven and field tested with over 500 accumulated flight hours
  • IP Core is provided as generic VHDL source-code suitable for FPGA, SoC and ASIC
  • Note: we can also offer this core as a combined 978 MHz (UAT) and 1090 MHz (ES) receiver

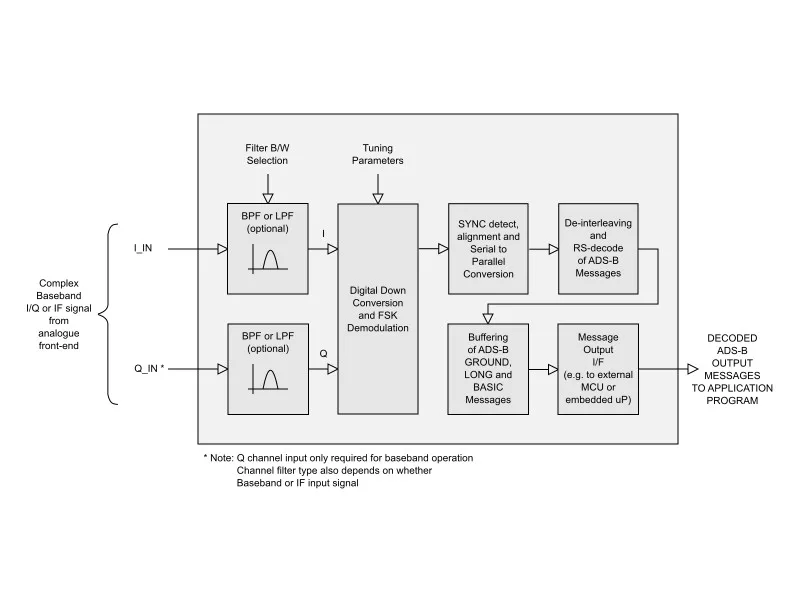

Block Diagram

UAT_TOP_IF block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
UAT_TOP_IF
Vendor
Zipcores Electronic Systems Engineering S.L.
Type
Silicon IP

Provider

Zipcores Electronic Systems Engineering S.L.
HQ: Spain
Zipcores design and sell IP Cores for implementation on all semiconductor devices. Founded in 2008, we are a team of experienced Engineers with a broad knowledge of digital hardware design spanning various fields. Our specific areas of expertise include Digital Video, DSP, Digital Modulation and high-speed interfaces. We offer a wide range of IP Cores for a variety of applications from basic building blocks to more complex systems. Our cores are supplied as clear readable VHDL or Verilog source-code and are synthesizable across multiple technologies - whether it be FPGA, ASIC or SoC.
