Vendor: Eureka Technology, Inc. Category: SD / eMMC Controller

eMMC 4.5 Card Slave Controller

eMMC 4.5 Card Slave Controller

Key features

  • Compatible with eMMC/MMC specification 4.5.
  • Supports Dual Data Rate (DDR) data transfer.
  • Enhanced MMC features including Boot, Sleep Mode, Reliable Write, Multiple Partitions and Security.
  • Supports e2.MMC command set and HS200 mode for 200MByte/sec data rate.
  • Simple 32-bit bus master interface to DMA data into user memory space.
  • Optional interrupt-based transfer mode to allow local CPU maximum control.
  • Optional two clock domain implementation allows user bus interface and MMC clock operates at different clock domains.
  • Selectable maximum block size from 512 to 16Kbytes.
  • Process most commands automatically without needing support from user logic.
  • Supports eMMC/MMC 4.5 command set and standard slave register set.
  • Choice of user interface bus including AHB, AXI, APB, PLB, Wishbone, SH4 and Avalon bus.

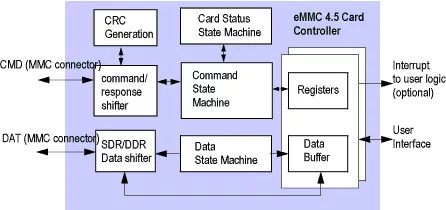

Block Diagram

Files

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
EP568
Vendor
Eureka Technology, Inc.

Provider

Eureka Technology, Inc.
HQ: USA
Eureka Technology Inc. provides reusable IP cores for ASIC, PLD and system designs. These system level function cores are designed to:
  • Shorten Time-to-market
  • Eliminate Design Risks
  • Reduce Development Costs
As today's technologies evolve in a very fast pace, design engineers are constantly looking for ways to speed up the design cycle in order to have product in the market ahead of the competitions. The use of reusable IP cores in IC and system design has emerged as the methodology of choice to address the needs for rapid productization, fast prototyping and software/hardware co-development. Eureka Technology help design engineers stay in the forefront of this new design methodology by providing reusable IP cores. Our reusable IP cores are silicon proven and pre-verified to meet and exceed customer requirements. Design risk is virtually eliminated since each one of these cores has been fully tested and proven in real world applications. Since founded in 1993, Eureka Technology has established itself as a leading reusable IP core provider with customer base in the United States, Japan, and Europe. We have provided reusable IP cores to many market leaders in the computer, electronics and semiconductor industries. Our technologies have been incorporated into tens of million dollars' worth of products sold by our customers. We also have entered partnership agreements with leading silicon vendors to incorporate our reusable IP cores into their silicon products. However, our important partnership is the one with our customers and we would like to be the design partner for your next project.
