eMMC Device Controller
eMMC 5.1 IP fully compliant to JEDEC JESD-84-B51, supporting full backwards compatibility, high speed SDR, high speed DDR, HS200 …
Overview
eMMC 5.1 IP fully compliant to JEDEC JESD-84-B51, supporting full backwards compatibility, high speed SDR, high speed DDR, HS200 and HS400 transfer modes. host transfer rate of up to 400 MByte/s in HS400 mode, supporting 1, 4 and 8 bit bus width.
Key features
- Compliant to the eMMC Electrical Standard 5.1A
- Supports Backwards Compatible, High Speed SDR, High Speed DDR, HS200 and HS400 transfer modes
- Host transfer rate of up to 400 MByte/s in HS400 mode
- Supports 1, 4 and 8 bit bus width
- Supports 3.3V and 1.8V signaling level

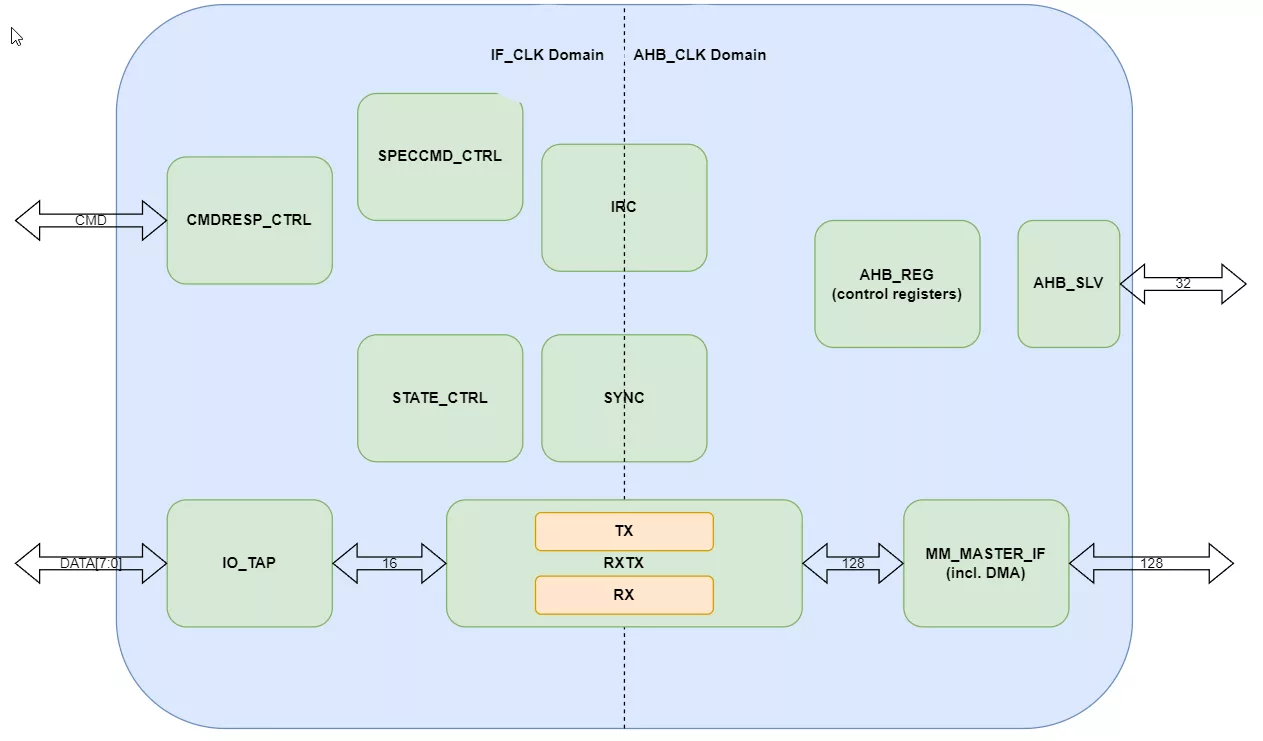

Block Diagram
SB-eMMC-IP-0010 block diagram
Benefits
- compatible with Synopsys VIP incl. test-bench extensions
- On request full software support and drivers can be made available
- Silicon proven and in mass production
- Proven Testmetrix compliance
- Wide host system compatibility
- FPGA ready
- Performance optimized memory interface (128-bit)
- Optional complementary security software or hardware IP available also to support eMMC security extension
Applications
- eMMC Devices
- eMMC memories
- eMMC Flash storage products
What’s Included?
- Specification & data book
- Verilog code (encrypted)
- Verilog code (non encrypted on request available)
- GDS II data on request (GF40)
- Synthesis scripts (FPGA & ASIC)
- STA constraints (GF40)
- DFT ready
- RAL register description
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
SB-eMMC-IP-0010
Vendor
Swissbit AG
Provider
Swissbit AG
HQ:
Switzerland
Swissbit AG is the leading European manufacturer of storage, security and embedded IoT solutions for demanding applications. Swissbit combines its unique competences in storage and embedded IoT technology with its advanced packaging know how. This expertise allows our customers to reliably store and protect data in industrial, NetCom, automotive, medical and fiscal applications as well as across the Internet of Things (IoT). Swissbit develops and manufactures real industrial storage and security products “Made in Germany” with long-term availability, high reliability and custom optimization.
