DDR5, DDR4, DDR3 PHY The DDR solutions, a family of high-speed on-chip interface IP, are the way for high-performance computing (…
Overview
DDR5, DDR4, DDR3 PHY
The DDR solutions, a family of high-speed on-chip interface IP, are leading the way for high-performance computing (HPC) systems and data center applications. The DDR PHY IP is engineered to quickly and easily integrate into any system-on-chip (SoC) and is verified with the Denali DDR Controller IP as part of a complete memory subsystem solution. Available as a product optimized solution for specific applications such as DDR5, DDR4, DDR3 with many configuration options to select desired features and integration aspects.
Key features
- DDR5/4/3 training with write-leveling and data-eye training
- Optional clock gating available for low-power control
- Internal and external datapath loop-back modes
- I/O pads with impedance calibration logic and data retention capability
- Programmable per-bit (PVT compensated) deskew on read and write datapaths
- RX and TX equalization for heavily loaded systems

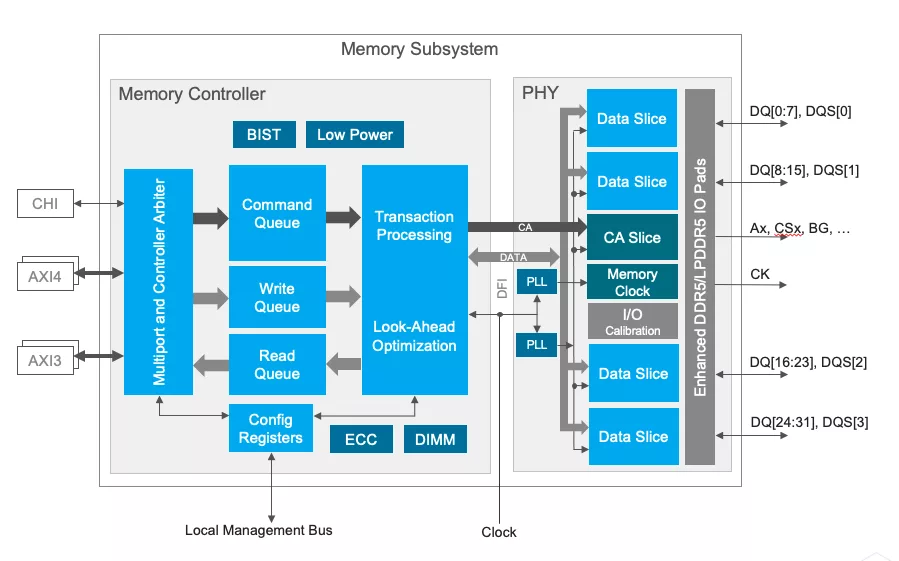

Block Diagram
DDR PHY block diagram
What’s Included?
- Fully-Characterized hard macro (GDSII)
- Complete design views
- Full documentation and datasheet
Specifications
Identity
Part Number
DDR PHY
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP
Controller / PHY
Controller + PHY
,
PHY
Provider
Cadence Design Systems, Inc.
HQ:
USA
If you want to achieve silicon success, let Cadence help you choose the right IP solution and capture its full value in your SoC design. Cadence® IP solutions offer the combined advantages of a high-quality portfolio, an open platform, a modern IP factory approach to quality, and a strong ecosystem.
Now you can tackle IP-to-SoC development in a system context, focus your internal effort on differentiation, and leverage multi-function cores to do more, faster.
The Cadence IP Portfolio includes silicon-proven Tensilica® IP cores, analog PHY interfaces, standards-based IP cores, verification IP cores, and other solutions as well as customization services for current and emerging industry standards. The Cadence IP Factory provides you with an automated approach to the customization, delivery, and verification of SoC IP. As a result, you can spend more time on differentiation, with the assurance that you'll meet your performance, power, and area requirements.
Choosing Cadence IP enables you to design with confidence because you have more freedom to innovate your SoCs with less risk and faster time to market.
