Vendor: Noesis Technologies Category: Channel Coding

Configurable Reed Solomon Decoder

configurable Reed Solomon Decoder compliant with the requirements of nearly all modern standards using Reed-Solomon error correct…

Contact Provider Request Datasheet
TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

Highly configurable Reed Solomon Decoder compliant with the requirements of nearly all modern standards using Reed-Solomon error correction.

Key features

  • Fully parameterized Reed Solomon Decoder.
  • Adaptive code rate can be varied on the fly.
  • Erasures decoding support.
  • Shortened codes support.
  • Parameterized bits per symbol, codeword length and parity bytes.
  • Parameterized generator and primitive polynomial.
  • Burst or streaming decoding support.
  • Various architectures for different gate count/speed combinations.
  • Fully synchronous design using a single clock.

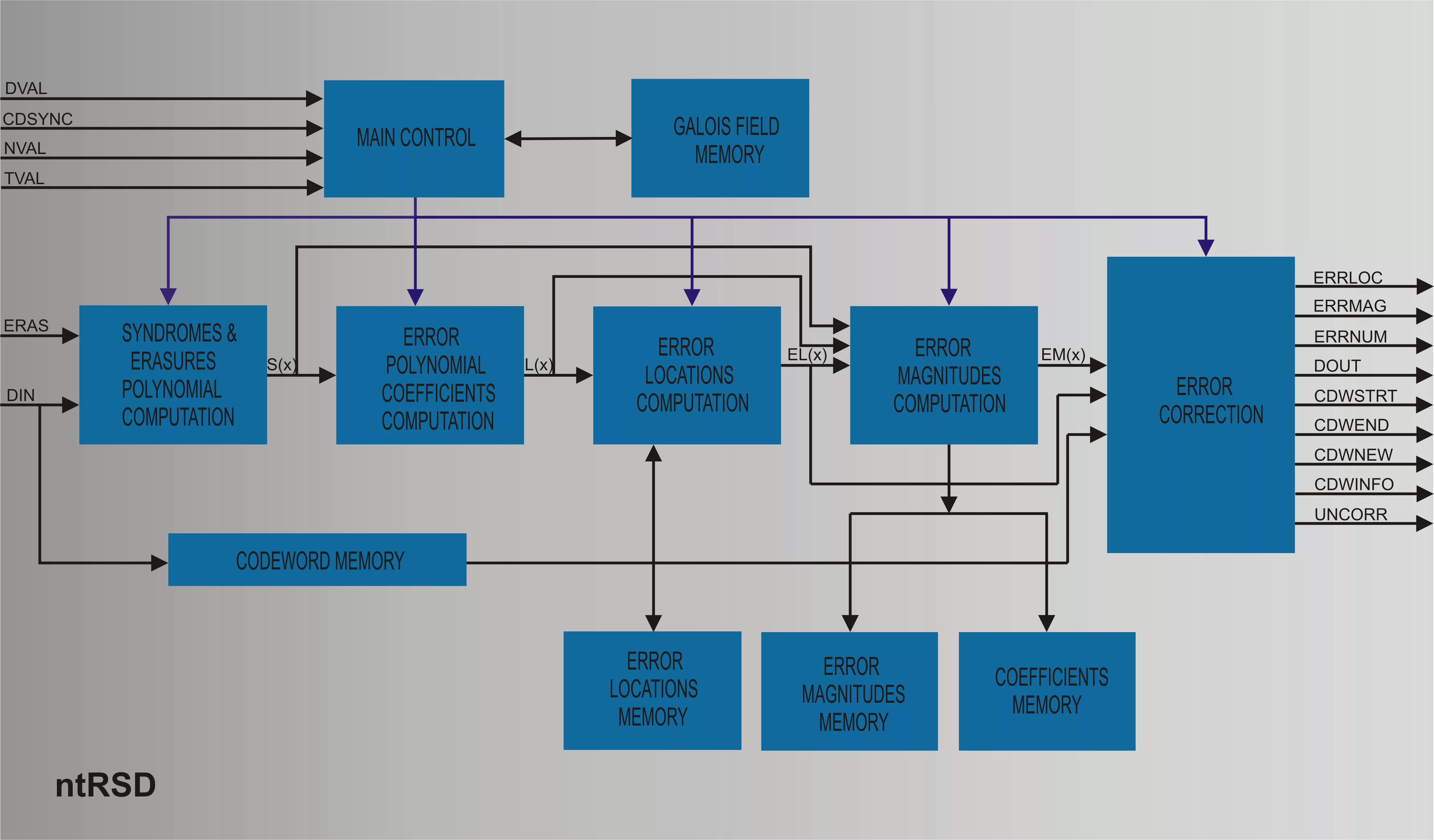

Block Diagram

ntRSD block diagram

What’s Included?

  • Synthesizable VHDL or Verilog code.
  • C++ model for system simulation.
  • Comprehensive test bench.
  • Detailed user's guide.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 180nm BCDG2 Silicon Proven

Specifications

Identity

Part Number
ntRSD
Vendor
Noesis Technologies

Provider

Noesis Technologies
HQ: Greece
Noesis Technologies specializes in design,development and marketing of high quality, cost effective communication IP cores and provides expert ASIC/FPGA design services in telecom DSP area. Our solutions are key components to the most sophisticated telecom systems. Backed-up by our leading-edge expertise on forward error correction, encryption and networking technology as well as on DSP algorithm development we provide robust solutions that are used to improve data quality, increase bandwidth or reduce the overall system cost of end-application.
