ColdFire V4 Core & Standard Product Platform (SPP) C2

The ColdFire V4 Core & Standard Product Platform (SPP) C2 (CFV4SPPC2) combines the ColdFire V4 Core with industry proven platform peripherals to form a complete high performance micro-controller subsystem supported by a vast ecosystem of development tools and runtime software. With the CFV4SPPC2, you get:

• Performance—over 500 DMIPS at 345 MHz
• Reliability—from processor and peripheral IP already deployed in millions of embedded systems worldwide
• Rapid time-to-market—in just a few hours you can be developing software on your own FPGA implementation of the CFV4SPPC2

ColdFire V4 Performance

The ColdFire V4 Core is a high-performance implementation of the ColdFire architecture with 1.54 DMIPS/MHz instruction throughput and high-speed Harvard local buses with tightly coupled instruction and data caches and local SRAM. The ColdFire V4 Core also features an MMU for full operating system support plus pecial arithmetic hardware including a divider and enhanced MAC (EMAC) for faster execution of DSP algorithms, and an FPU for single and double-precision floating-point calculations.

Like all ColdFire architecture processors, the ColdFire V4 Core features a variable-length instruction set for maximum code density, industry-standard AMBA 2 AHB system bus interface for rapid system integration, and a wide selection of development tools, operating systems, drivers, and libraries from both commercial and open source providers.

Standard Peripherals and Interconnect

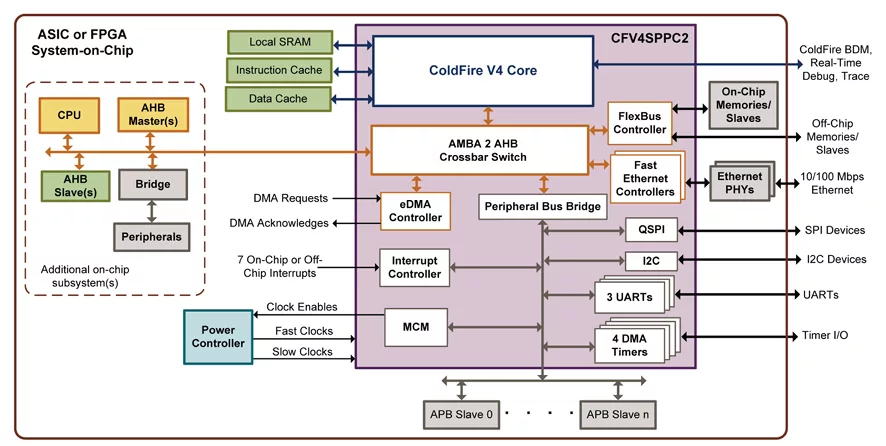

The CFV4SPPC2 includes the ColdFire V4 Core, plus the fully integrated peripherals shown in Figure 1, implementing functions commonly needed for embedded systems including Ethernet, interrupt control, DMA, timers, and various serial interfaces. An AMBA 2 AHB Crossbar Switch provides the system interconnect, supporting simultaneous transfers between multiple AHB masters and slaves, including externally connected AHB masters and slaves.

Variations of the CFV4SPPC2 with different combinations of onboard peripherals are also available. For example, you can omit either one or both of the Fast Ethernet Controllers, or add one or more instances of the other on-board peripherals.

Peripherals Features

On-board peripherals and their features include:

• FlexBus Controller
  • Connects up to 6 on-chip or off-chip memories/devices
  • Independently programmable transfer characteristics for each device (wait states, address setup/hold)
• Enhanced DMA (eDMA) Controller
  • 16 independently programmable DMA channels
  • Programmable channel arbitration modes
  • Support for channel linking and scatter/gather operation
• Two Fast Ethernet Controllers, each of which provides
  • 10/100 Mbps Ethernet support
  • Half and full-duplex modes
  • Media Independent Interface (MII) or 7-wire interface to Ethernet PHY
• Interrupt Controller
  • 64 programmable interrupt sources, 7 of which are available for external interrupts
  • Unique vector for each interrupt source
  • Support for low-power mode wake-up
• Queued SPI (QSPI) module
  • Programmable queue for up to 16 SPI transfers
  • Four chip-select lines for up to 16 devices
  • Programmable baud rate, before-and-after transfer delays, clock phase and polarity
• I2C interface module
  • Support for the original Philips I2C bus protocol
  • Support for baud rates up to 3.4 Mbps
• 3 UARTS
  • Programmable clock source, data formats, and modes (normal/loopback)
  • Error detection
  • Four maskable interrupt conditions
• 4 DMA Timer modules
  • Programmable clock source
  • Programmable prescaler
  • Programmable interrupt or DMA request upon timer event
• Miscellaneous Control Module (MCM)
  • Software watchdog timer
  • Reset status, low-power mode control, and core fault status registers

Power Saving Features

The CFV4SPPC2 features software-controlled shutdown of selected clocks to support a variety of chip-level low-power modes:

• Independent shutdown of selected peripheral clocks
• Shutdown of the ColdFire V4 Core CPU clock in response to a ColdFire STOP instruction; the ColdFire V4 Core local SRAM Controller clock may optionally be kept running in STOP mode to support access to local SRAM from external AHB masters

Debug Support

The CFV4SPPC2 supports ColdFire Debug Architecture Revision D+, including:

• Background Debug Mode (BDM)
• Real-Time Trace (RTT)
• Real-Time Debug (RTD)
• On-chip, 128-entry trace buffer for low-cost trace over BDM

Development Support

The ColdFire architecture, including the ColdFire V2 Core, is supported by a vast assortment of development systems/tools and run-time software including libraries, stacks, drivers, and operating systems from providers such as NXP, Green Hills Software, Wind River Systems, and many more. A free version of the GNU compiler supporting ColdFire V2 targets is also available from www.gnu.org.NXP offers development boards, software, and CodeWarrior Development Tools (including a free version. In addition, there are several operating systems supporting the ColdFire V2 architecture, including uClinux and several RTOS’s, such as the MQX RTOS from Embedded Access, Inc.

• Verilog source code
• Integration testbench and tests
• Documentation
• Scripts for simulation and synthesis with commonly-used EDA tools
