CCSDS Rate 1/2 TC and TM LDPC Decoder

The LCD03C is a low complexity decoder for the CCSDS rate 1/2 telecommand (TC) and telemetry (TM) low density parity check (LDPC)…

Contact Provider Request Datasheet

Overview

The LCD03C is a low complexity decoder for the CCSDS rate 1/2 telecommand (TC) and telemetry (TM) low density parity check (LDPC) standard. The TC decoder implements data lengths of 64 or 256. The optional TM decoder implements a data length of 1024.

Key features

  • CCSDS TC and TM compatible
  • Rate 1/2
  • Data lengths of TC 64 and 256 or optional TM 1024 bits
  • Includes ping-pong input and output memories
  • Up to 624 MHz internal clock
  • Up to 2.7 Mbit/s with 30 decoder iterations
  • 6-bit two's complement input data
  • Up to 256 iterations
  • Scaled min-sum decoding algorithm
  • Optional power efficient early stopping
  • Parity check output
  • From 305 to 385 LUTs and 4 to 8 18KB BlockRAMs for Xilinx FPGAs
  • Available as EDIF and VHDL core for Xilinx FPGAs under SignOnce IP License. Custom ASIC, Intel/Altera, Lattice and Microchip/Microsemi/Actel FPGA cores available on request.
  • Free simulation software

Block Diagram

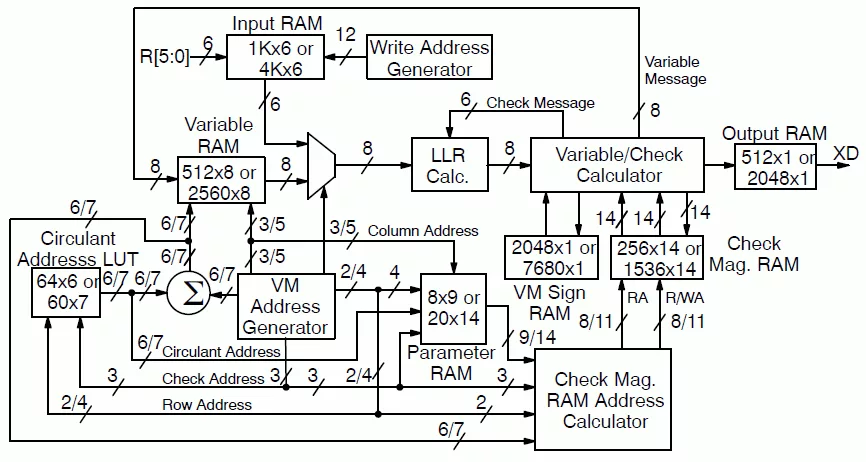

LCD03C block diagram

What’s Included?

  • All Licenses
    • EDIF Core for Virtex-II, Spartan-3, Virtex-4
    • VHDL Core for Virtex-5, Spartan-6, Virtex-6, 7-Series, UltraScale, UltraScale+
    • Test vector generator
  • ASIC License
    • VHDL ASIC Core

Specifications

Identity

Part Number
LCD03C
Vendor
Small World Communications
Type
Silicon IP

Files

Product Sheet Download
