Vendor:
Silvaco, Inc.
Category:
SPI / QSPI XSPI
AXI Quad SPI Controller with Execute in Place (XIP)
The Ultra High-Speed cache memory is an adaptable, independent, non-coherent cache Intellectual Property (IP) featuring an cache …
Overview
The Ultra High-Speed cache memory is an adaptable, independent, non-coherent cache Intellectual Property (IP) featuring an advanced cache architecture. This architecture enhances system performance, scalability, power efficiency, data locality, application responsiveness, cost optimization, and market competitiveness, providing a distinctive business value.
Key features
- AMBA AXI interface
- Execute-in-place (XIP) functionality for several industry-standard FLASH devices
- DMA Interface
- Software programmable Master component or Slave component mode
- Software programmable SCLK rate for Master component mode
- Quad and Dual-bit mode operation
- 4-bit to 32-bit serial transmit & receive – 1 bit increments
- Full and Half operation
- Separate SCLK input for Master component Mode
- 8 to 256 word Transmit and Receive FIFOs - configurable
- Asynchronous Slave component Interface
- Interrupt control
- LSB or MSB mode
- Up to 4 Slave components under Master component control

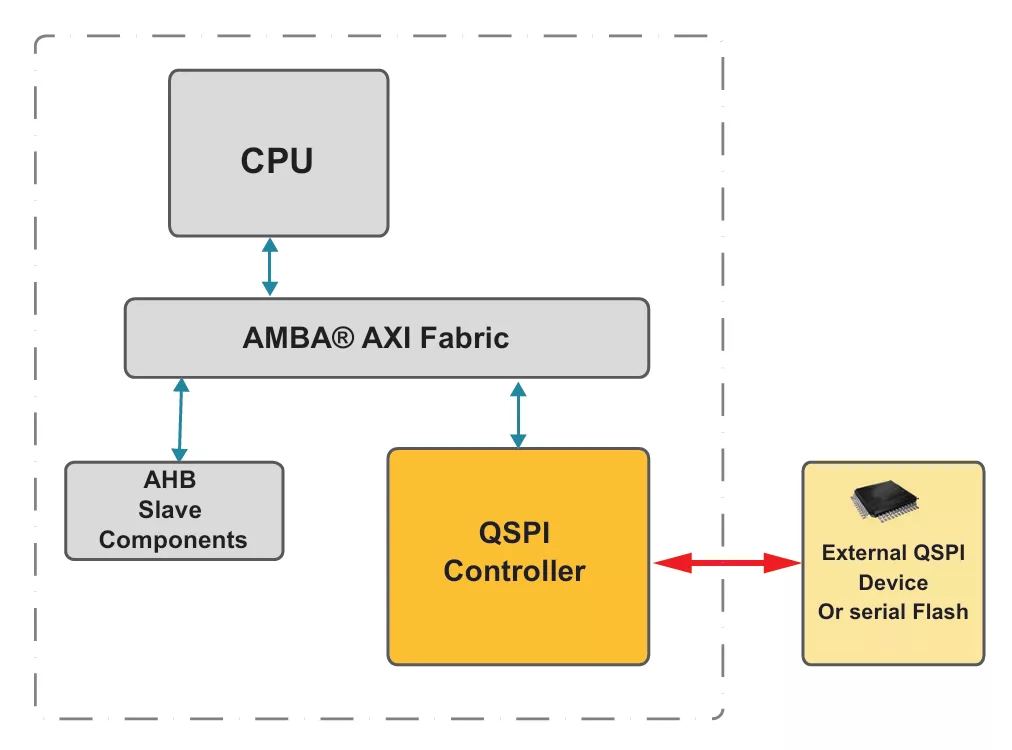

Block Diagram
AXI Quad SPI Controller with Execute in Place (XIP) block diagram
What’s Included?
- Verilog Source
- Complete Test Environment
- AXI Bus Functional Model
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
AXI Quad SPI Controller with Execute in Place (XIP)
Vendor
Silvaco, Inc.
Type
Silicon IP
Provider
Silvaco, Inc.
HQ:
United States
Silvaco focuses on enabling the next generation of AI/ML, Cloud/Datacenter, Automotive and Autonomous Driving, IoT and 5G designs through a comprehensive offering of Silicon proven IP. Our portfolio includes a complete catalog of Interface IP, Amba Peripherals, Subsystems, MIPI IP and Automotive Communication Controller IP. Our experienced ASIC and Embedded Software designers have a rich history of designing SOCs with embedded microprocessors which are crucial to building small connected smart chips.
