AHB Multilayer Interconnect IIP

AHB Multilayer Interconnect IP core is compliant with AMBA AHB Specification.

Contact Provider Request Datasheet

Overview

AHB Multilayer Interconnect IP core is compliant with AMBA AHB Specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. AHB Multilayer Interconnect IIP is proven in FPGA and ASIC environment.

AHB Multilayer Interconnect IIP is supported natively in Verilog and VHDL

Key features

  • Compliant with AMBA AHB specification
  • Supports configurable number of AHB Master
  • Supports configurable number of AHB Slave
  • Supports standardized user interface signals for easy integration with any IP
  • Supports control logic to map User Interface signals with the AHB signals
  • Supports configurable Data and Address Bus
  • Supports user-defined Slave to Master mapping
  • Supports user-defined Slave address per Master
  • Round-robin or priority based arbitration selectable per Slave
  • Higher throughput and less arbitration overhead between Masters as arbitration is done at each Slave port
  • Supports all protocol transfer types, burst transfers and response types
  • Support for all the transfer sizes
  • Supports configurable Endianness of the Data bus
  • Supports locked transfers
  • Supports early burst termination on receiving Error response from Slave
  • Supports two cycle error response in Slave
  • Supports response generation with wait states in Slave
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to Microprocessor/Microcontroller devices

Block Diagram

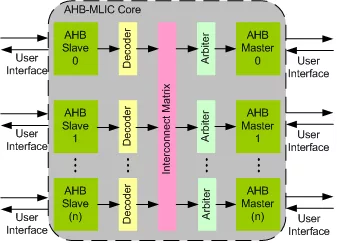

AHB Multilayer Interconnect IIP block diagram

Benefits

  • Single site license option is provided to companies designing in a single site.
  • Multi sites license option is provided to companies designing in multiple sites.
  • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
  • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.

What’s Included?

  • The AHB MLIC interface is available in Source and netlist products.
  • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
  • Easy to use Verilog Test Environment with Verilog Testcases
  • Lint, CDC, Synthesis, Simulation Scripts with waiver files
  • IP-XACT RDL generated address map
  • Firmware code and Linux driver package
  • Documentation contains User's Guide and Release notes.
