Vendor: Dolphin Semiconductor Category: Audio Codec

90 dB of SNR, 24-bit stereo audio CODEC with 450 mW mono speaker driver and headphone output

Its small silicon area but exhaustive and robust features make shCODlv-90.14 THE most suitable solution for your mixed-signal SoC…

Contact Provider Request Datasheet
TSMC 180nm BCDG2 In Production View all specifications

Overview

Its small silicon area but exhaustive and robust features make shCODlv-90.14 THE most suitable solution for your mixed-signal SoC targeting multimedia phone applications in the era of the ePHONE Second Generation is released for Return-On-Investment maximization thanks to area and pin optimization.

Key features

  • Maximized yield with the best trade-off between silicon area and SoC / PCB costs
  • Capacitor-less headphone driver
  • Filter-less line-out and BTL speaker driver
  • PLL-less feature to avoid jitter noise issues
  • Single master clock generates all sampling frequencies

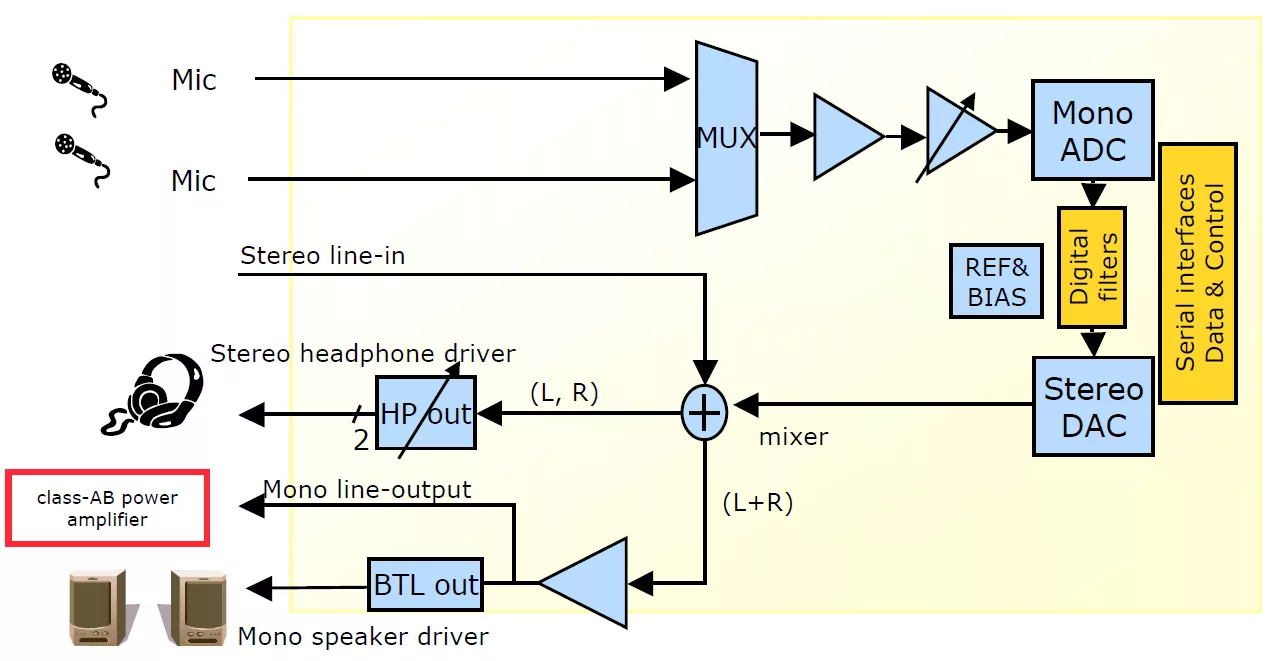

Block Diagram

shCODlv-90_14-2G.TSMC.180.G block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 180nm BCDG2 In Production

Specifications

Identity

Part Number
shCODlv-90_14-2G.TSMC.180.G
Vendor
Dolphin Semiconductor

Provider

Dolphin Semiconductor
HQ: France
Dolphin Semiconductor is a leading provider of semiconductor IP solutions, specializing in mixed signal IP design targeting markets such as Industrial, High-Performance Computing, Consumer Electronics, IoT and Automotive. Dolphin Semiconductor cutting-edge technology IPs in power management, high-quality audio, power metering, and design safety/robustness, allow their customers to accelerate design cycles, foster faster time-to-market and build products that address the challenges of any industry and support a more sustainable world. With a customer-centric approach, Dolphin Semiconductor provides exceptional support for successful project outcomes.
Contact Dolphin Semiconductor

Learn more about Audio Codec IP core

Paving the way for the next generation audio codec for the True Wireless Stereo (TWS) applications - PART 1 : TWS challenges explained

The audio market for wireless Bluetooth headsets is growing rapidly. Audio devices using Bluetooth (BT) connectivity are more ubiquitous than ever. People have gotten used to wireless audio systems, and the mobile phone industry is pushing towards a world without audio connectors and cables. The latest trend in wireless headsets and speakers is True Wireless Stereo systems (TWS), consisting of two independent units that are each charged in their own charging case.

Frequently asked questions about Audio Codec IP cores

What is 90 dB of SNR, 24-bit stereo audio CODEC with 450 mW mono speaker driver and headphone output?

90 dB of SNR, 24-bit stereo audio CODEC with 450 mW mono speaker driver and headphone output is a Audio Codec IP core from Dolphin Semiconductor listed on Semi IP Hub. It is listed with support for tsmc In Production.

How should engineers evaluate this Audio Codec?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Audio Codec IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
